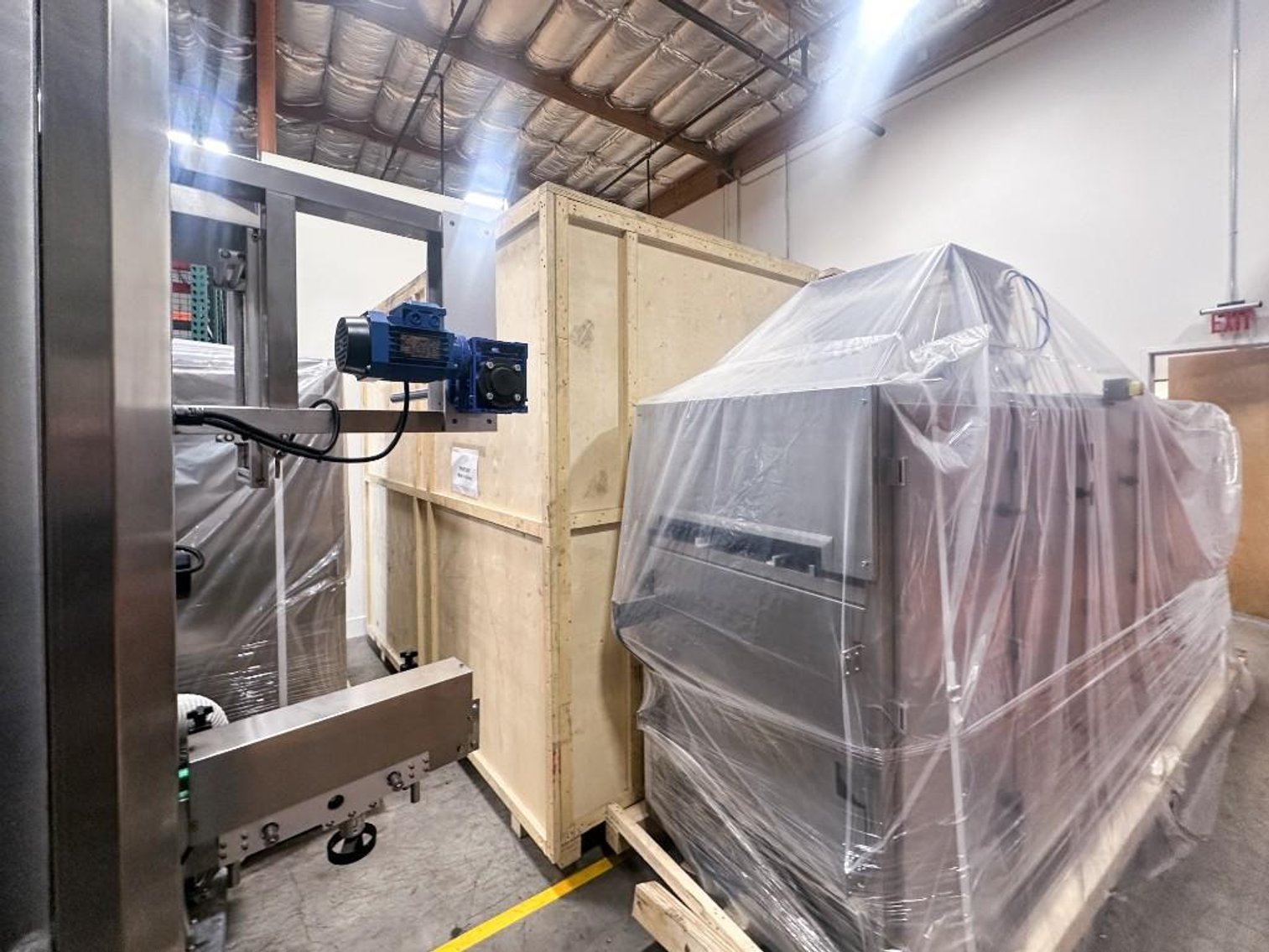

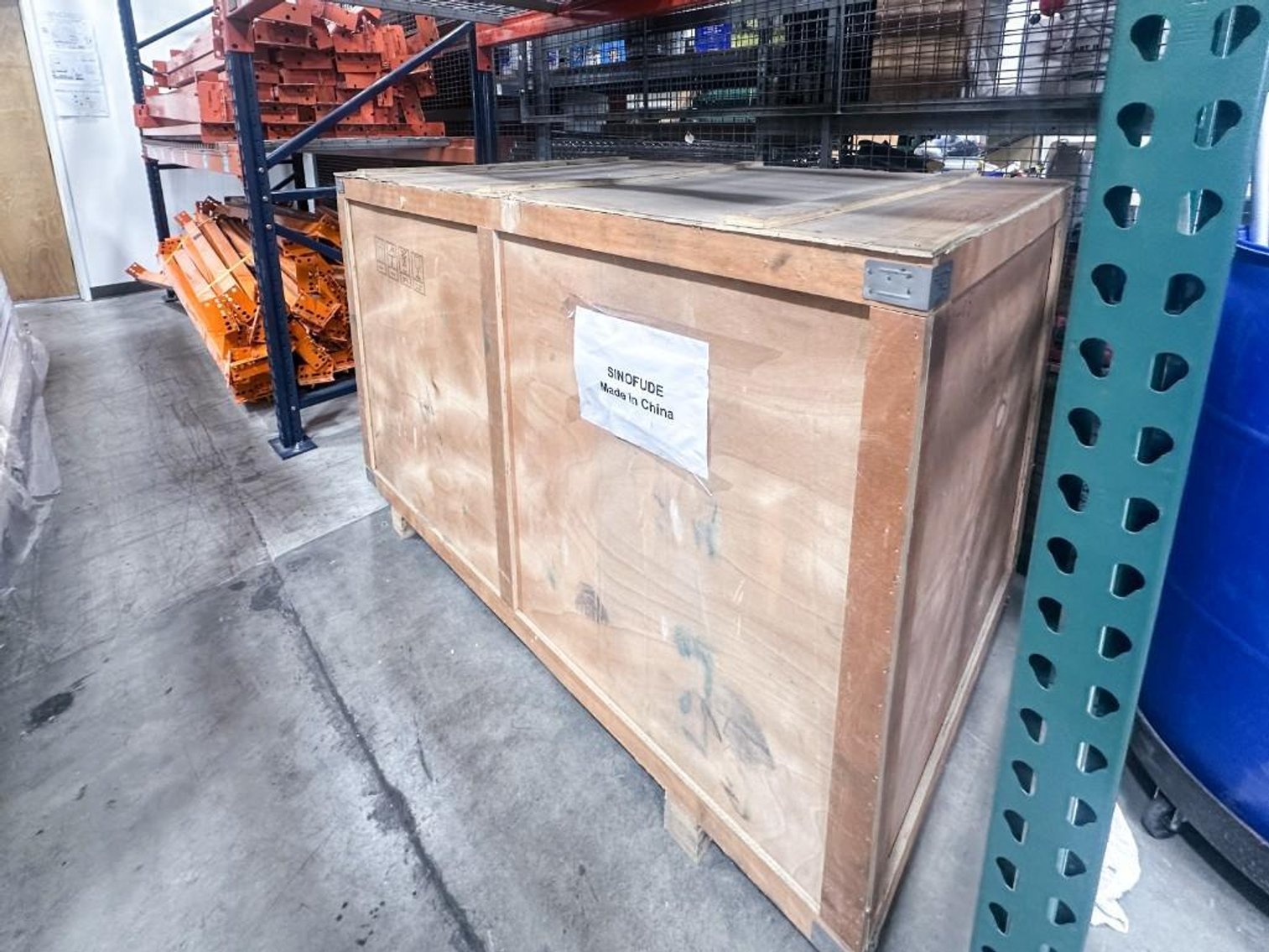

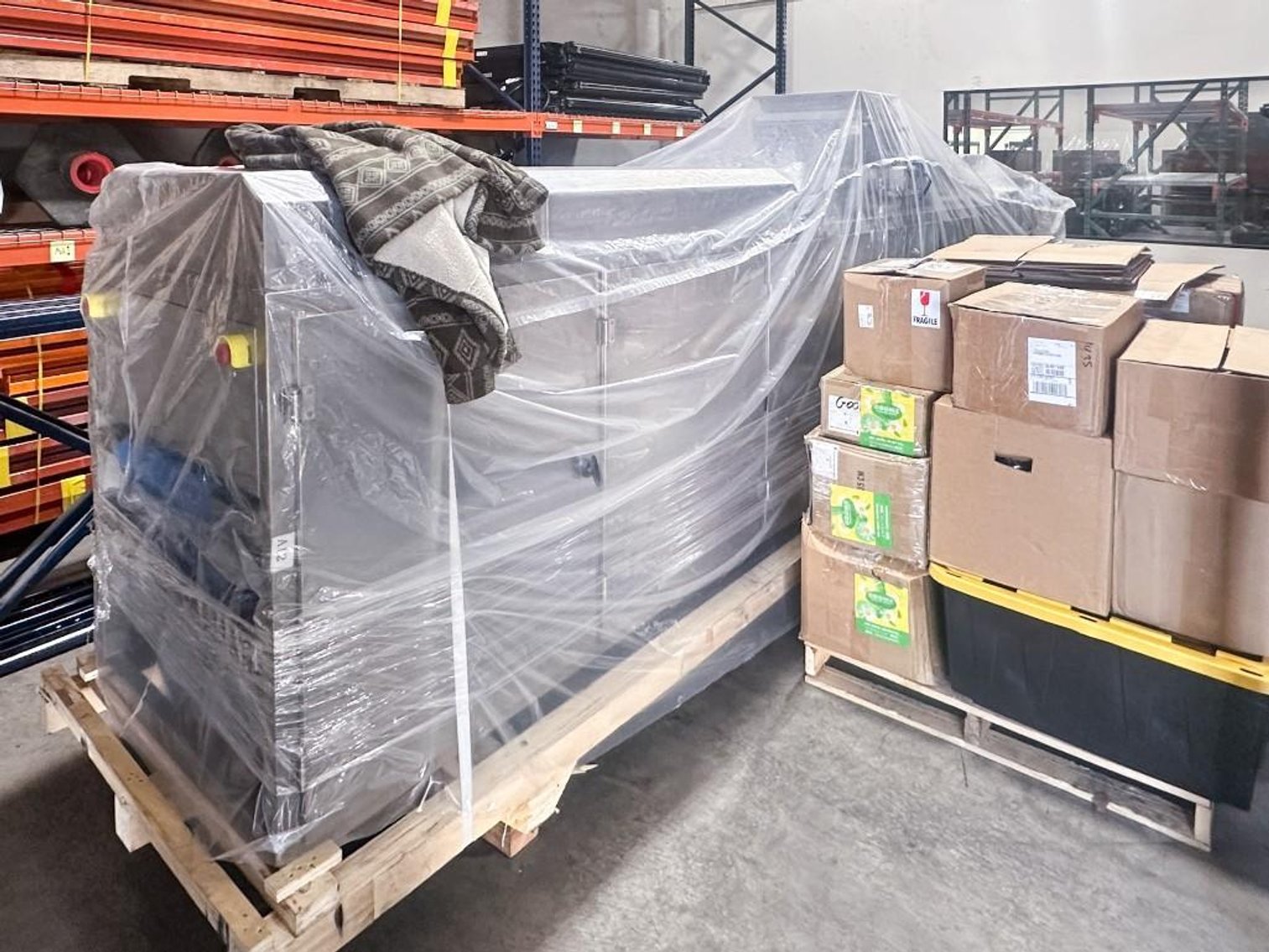

MJK2400 NEW IN CRATE - Complete Sinofude Chocolate Bar Production Line

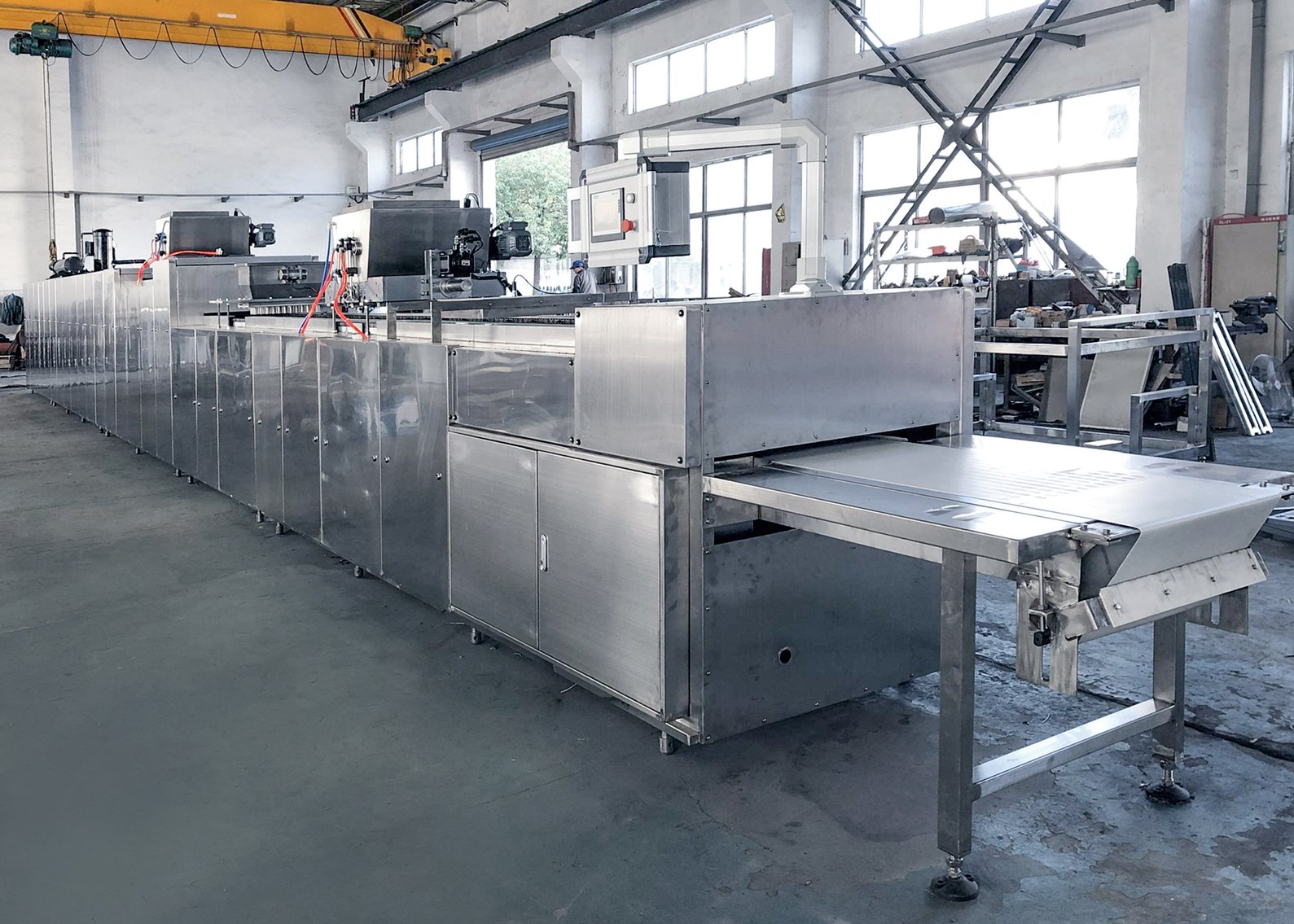

CJZ510-2 Dual-head Chocolate Production Line (with nut depositor)
The Sinofude CJZ510-2 Dual-head Chocolate Production Line (with nut depositor) is a versatile solution designed for the production of single-color chocolates, dual-color combinations (left and right or top and bottom), and centrally filled chocolates.

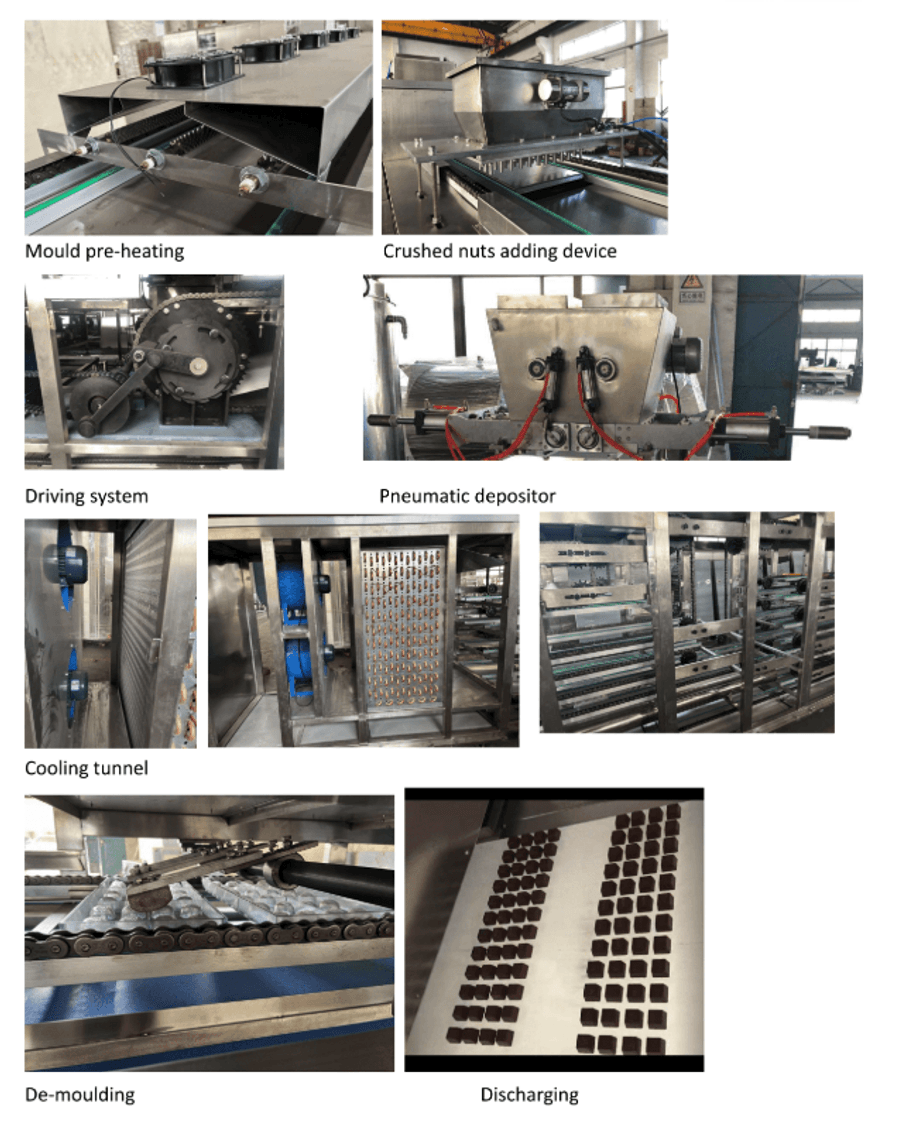

Features:
Mould pre-heating
Dual depositing cycles
Dual mould vibration

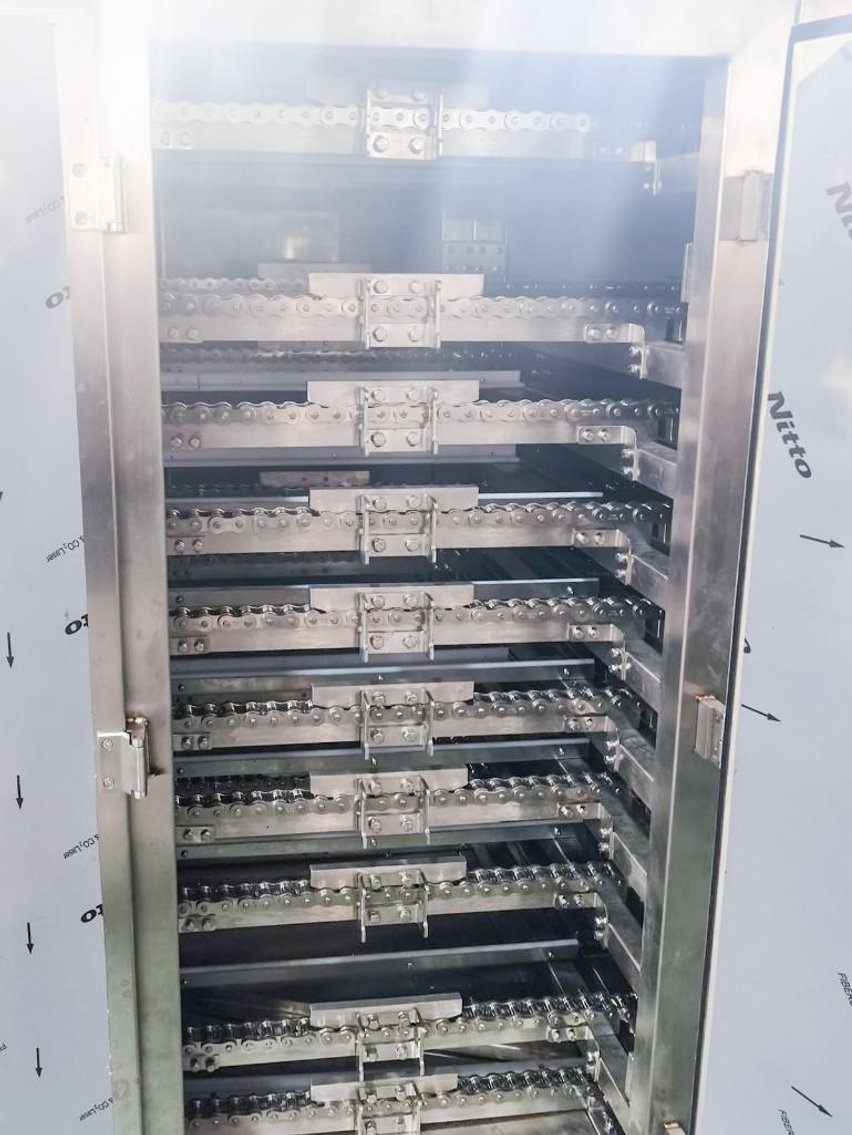

Dual-stage cooling
Automatic de-moulding and conveying
Includes:

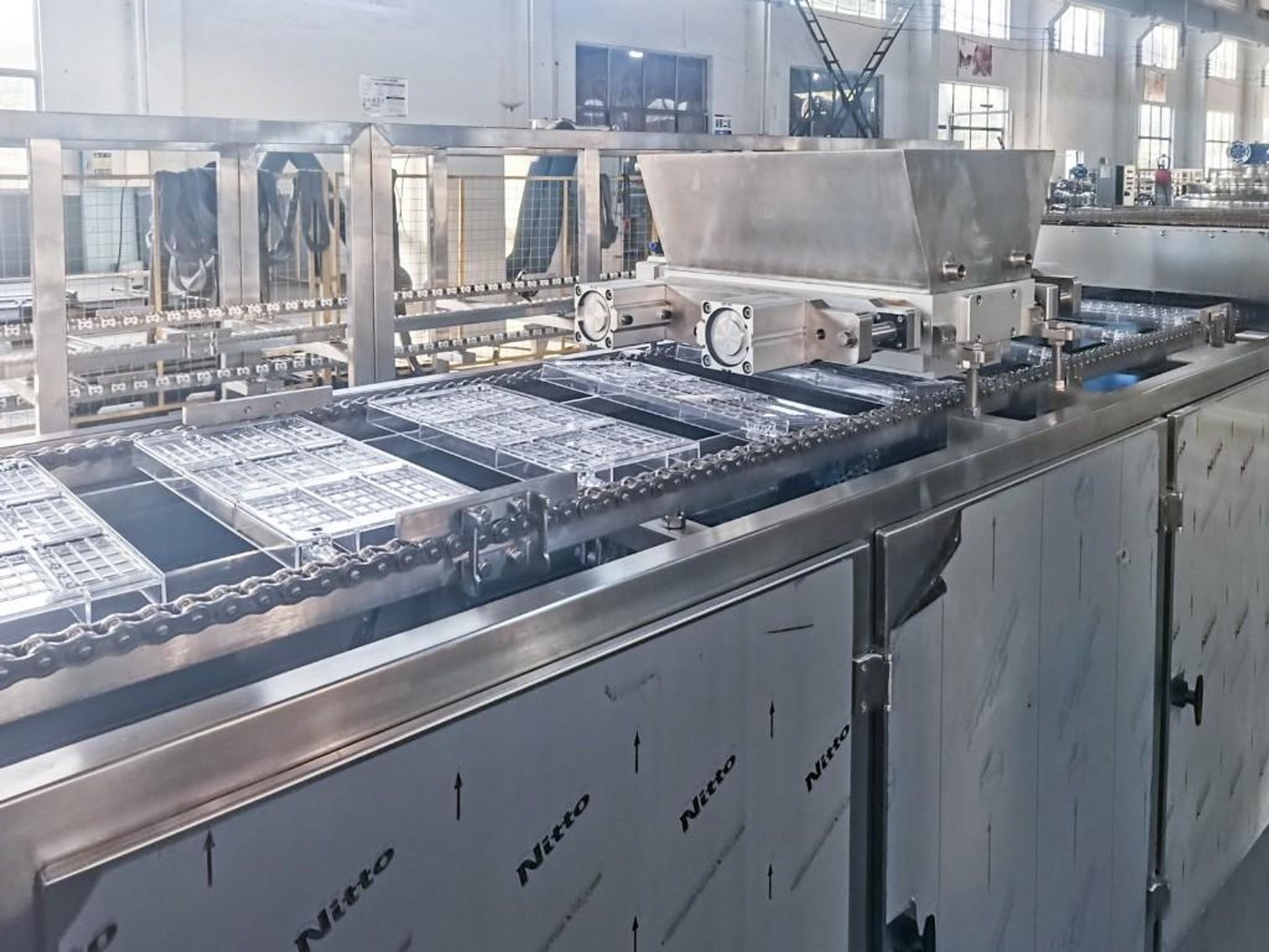

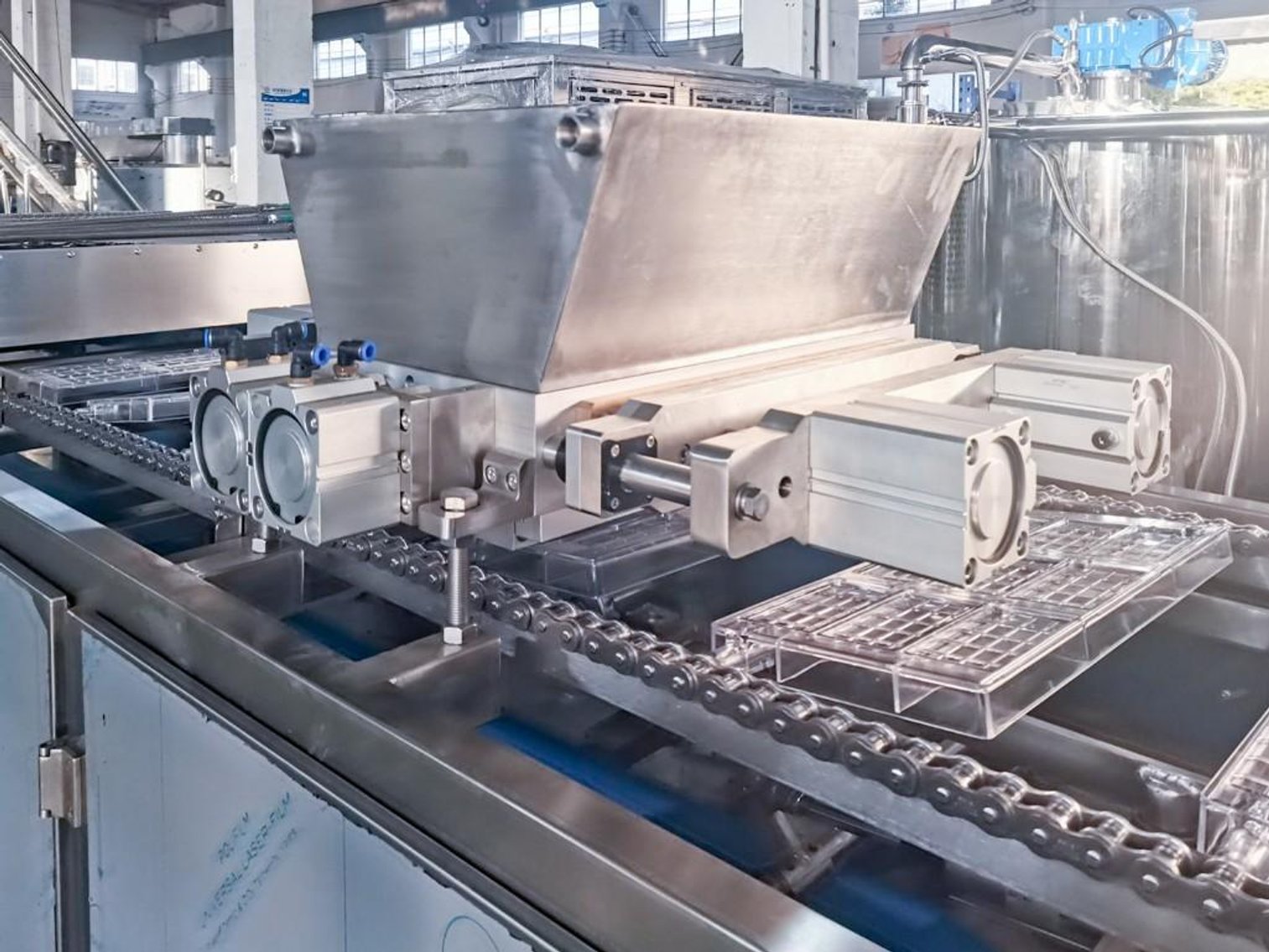

CJZ510-2 Dual-head Chocolate Depositor

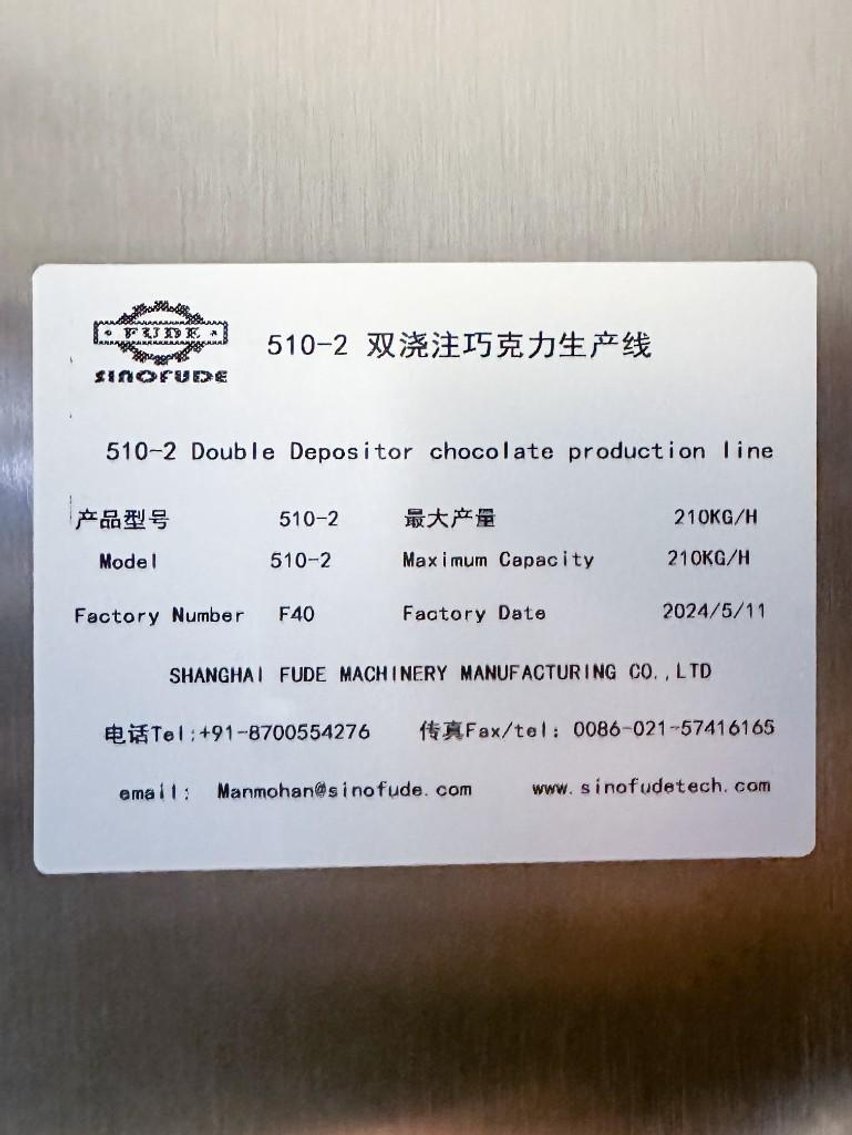

Model: 510-2
Capacity: 210KG/H
Serial Number: F40
MFG DATE: 2024/5/11
Product hopper with stirring system (2 sides for 2 different chocolate pastes)
with 1 water temperature control system.
Depositing Type: Pneumatic
Depositing Head Pistons: 48 pieces per-side and total 96 pieces(both sides)
Production Capacity: 6-15 pieces of moulds/minute
(The production weight per hour depends on the chocolate product that can fit in one mold. One set of flow discharging plate is attached with the machine, design according to the mould shape)
Number of Moulds: recommended 350 pieces (NOT included in the machine price)

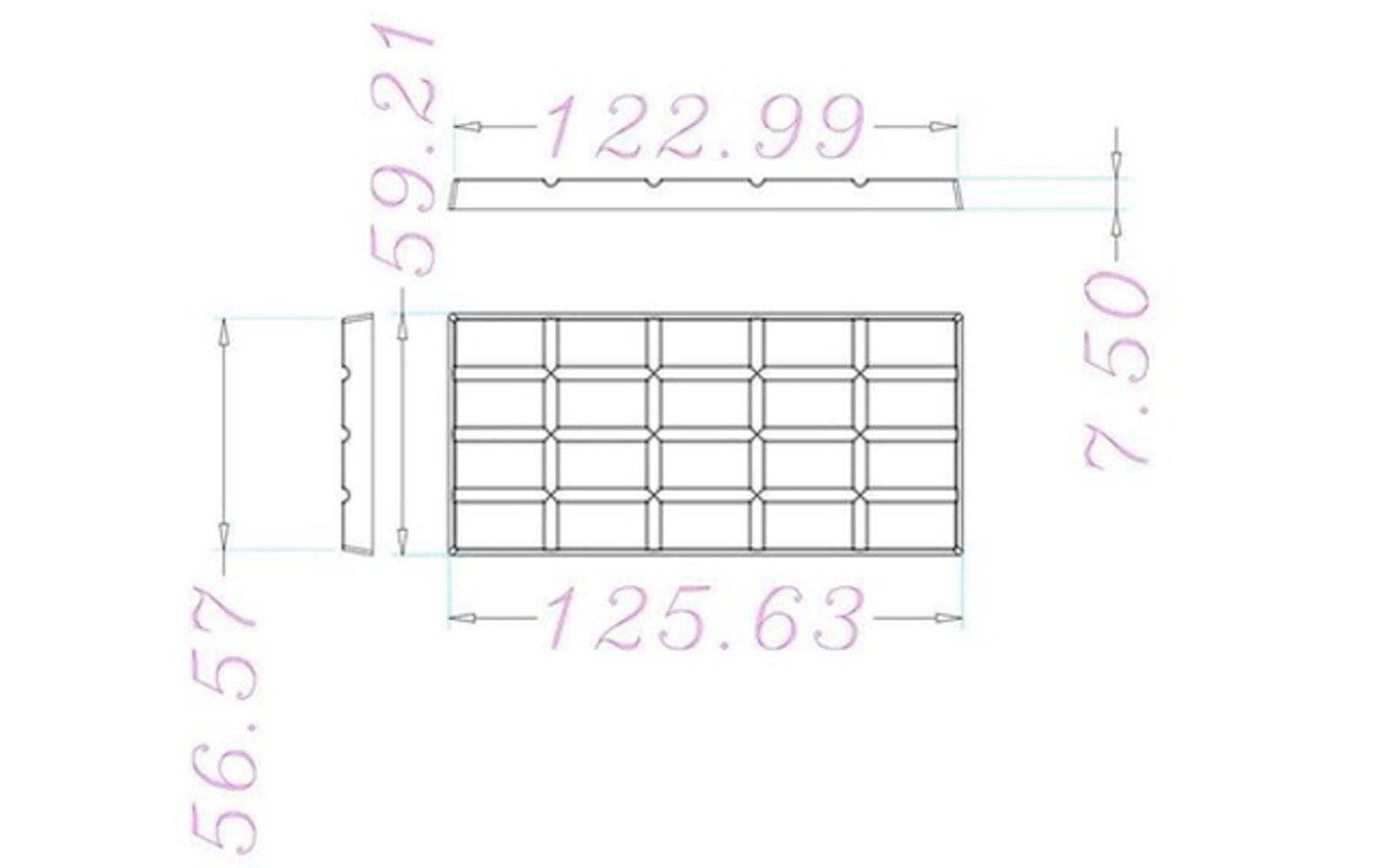

Moulds Size: 510*200*30mm
Machine Size: 16000*1000*1800mm,
Total Power: 25KW
Piston SeaI: Speedy
Hot Water Circulation Pump: Grundfos

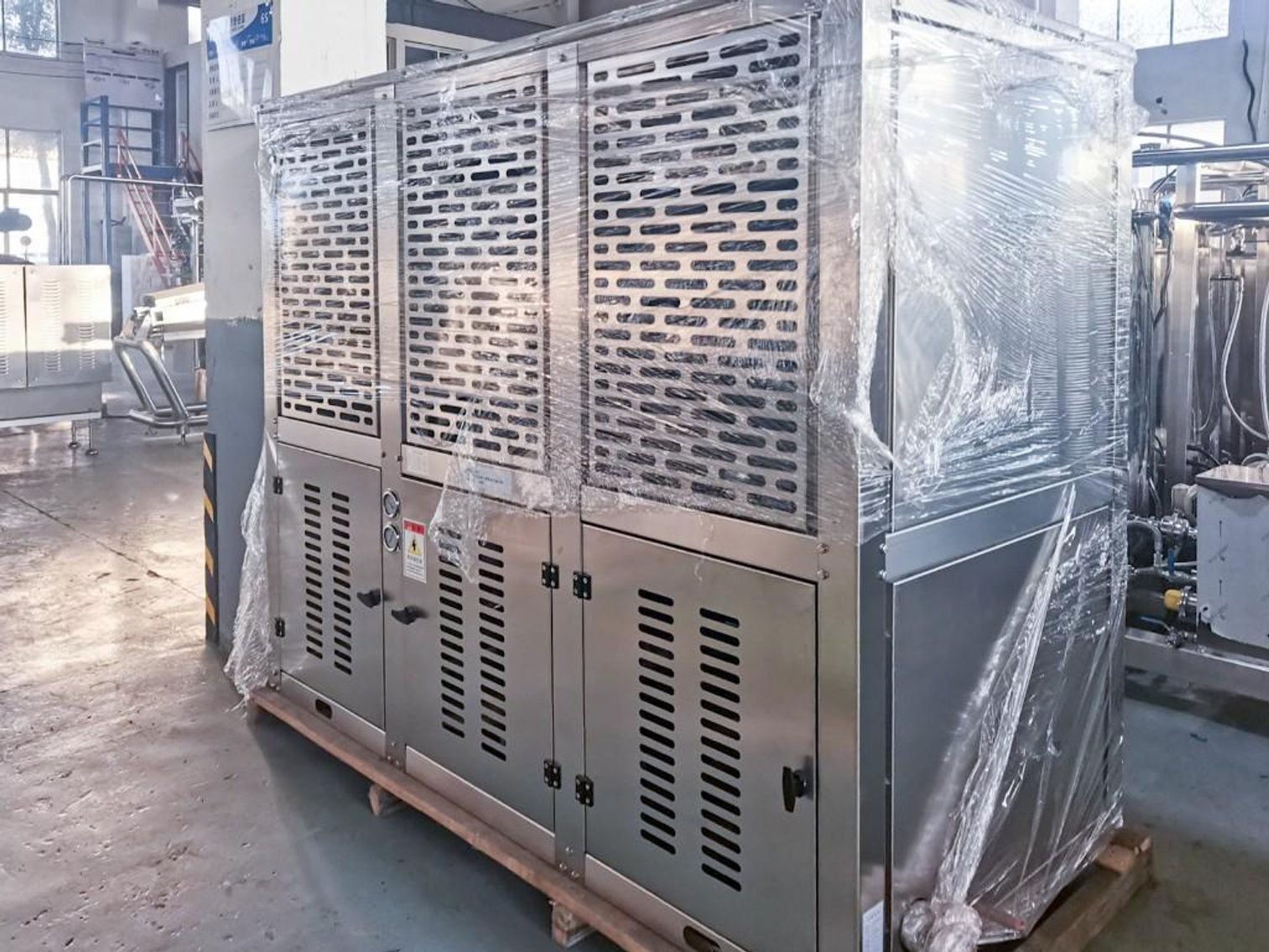

Cooling system : one set of 15Hp refrigeration unit
Cooling System brand: Copeland -Emerson
Electrical Components: Siemens or Schneider or Omron brand
Motor/Reducer: Chinese brand
Pneumatic Air Cylinder: Air TAC
PLC control
Upgraded Components:
1 - All pumps upgraded to Durrex Lobe Pumps
2 - Installed 3-way valve at the tank before the pumps
3 - Heating pipe hoses were replaced with stainless steel mesh hoses

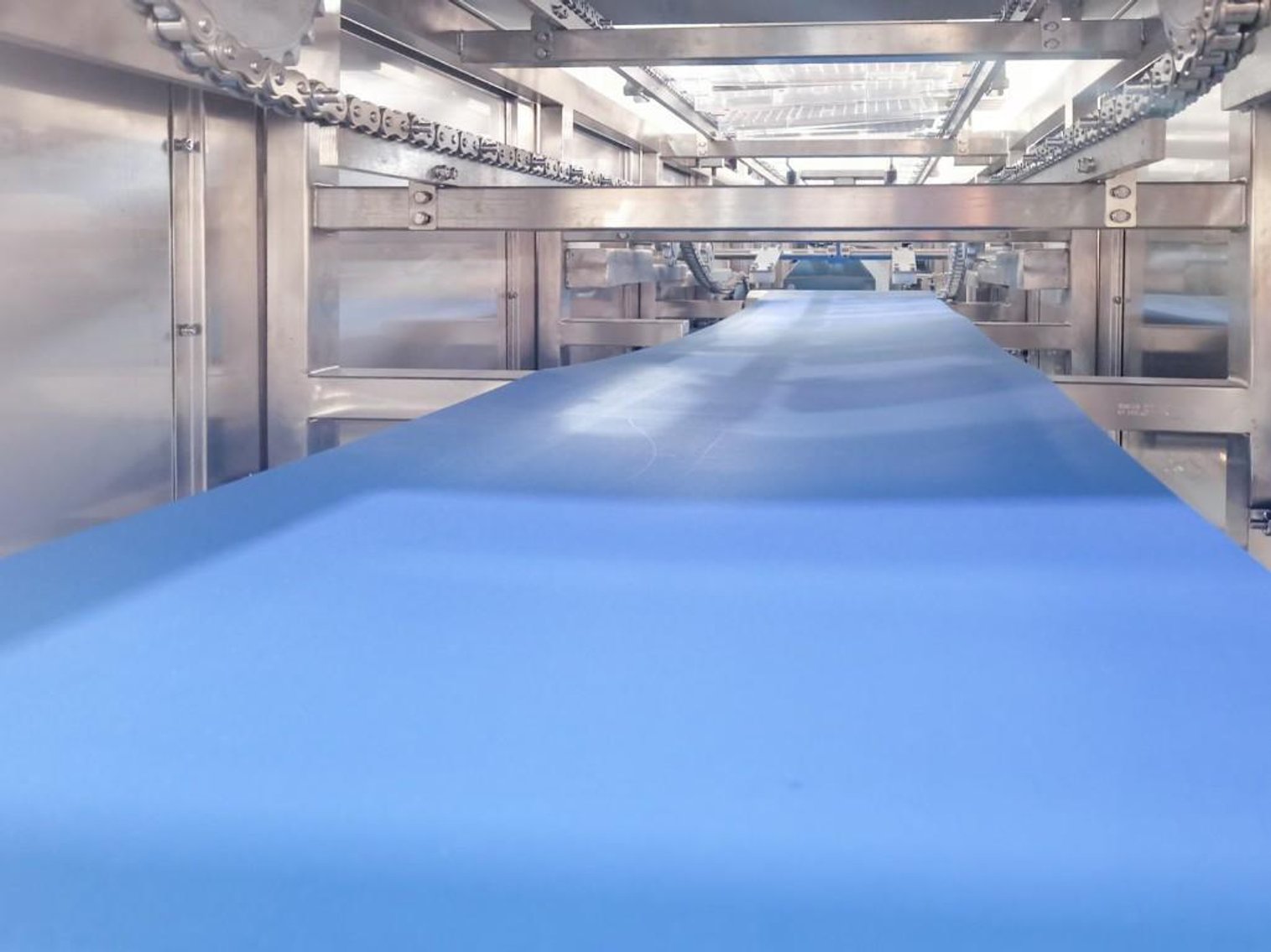

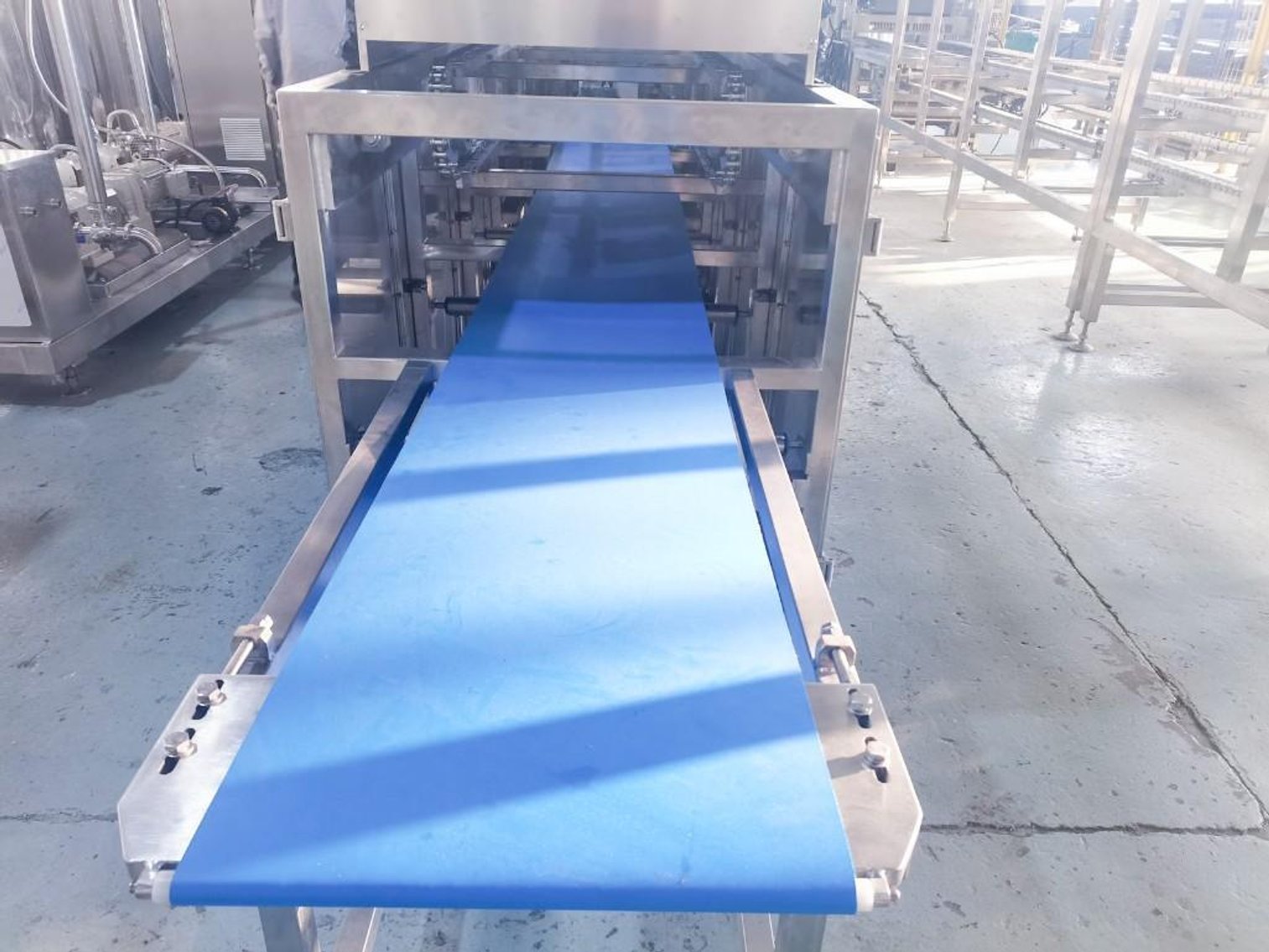

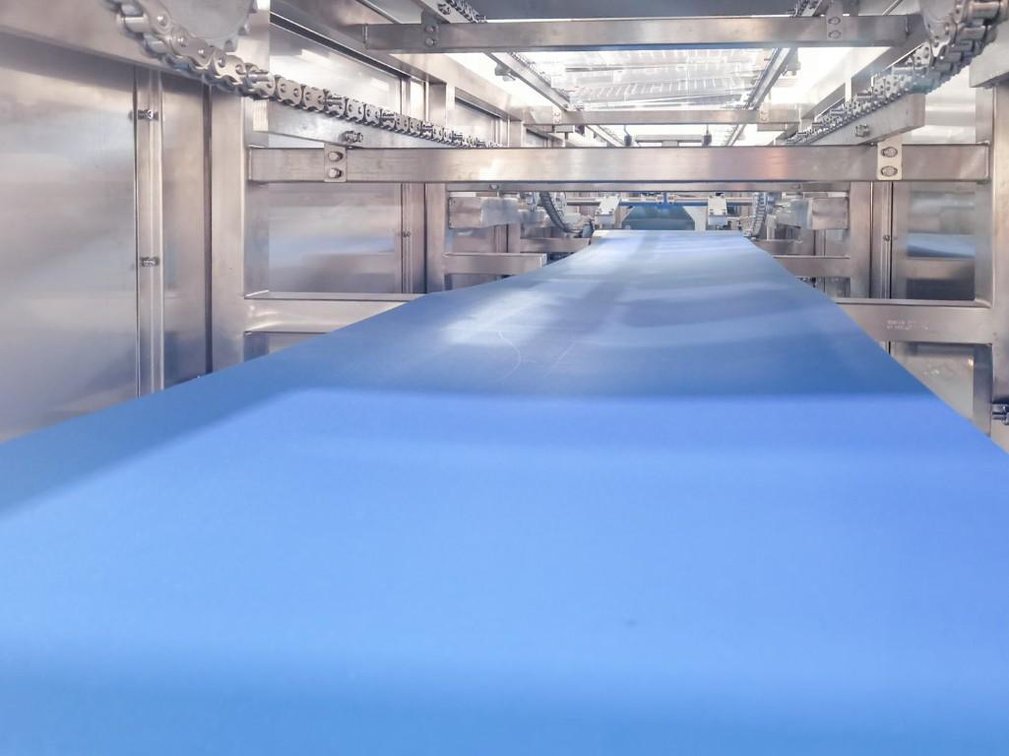

4 - Conveyor belt upgraded to PU blue belt
5 - Heating elements upgraded to 4×12kW per tank and heating pipe tanks

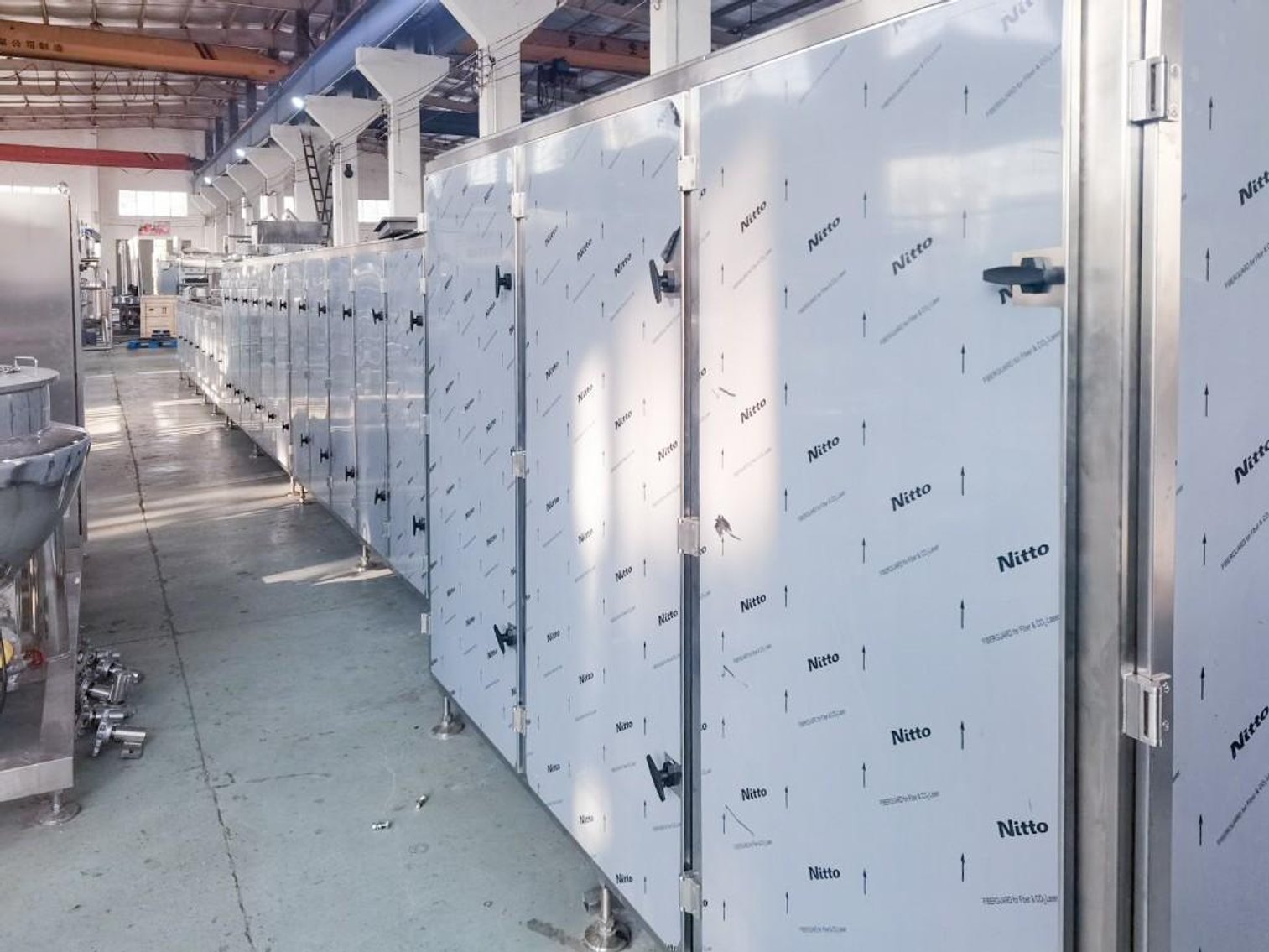

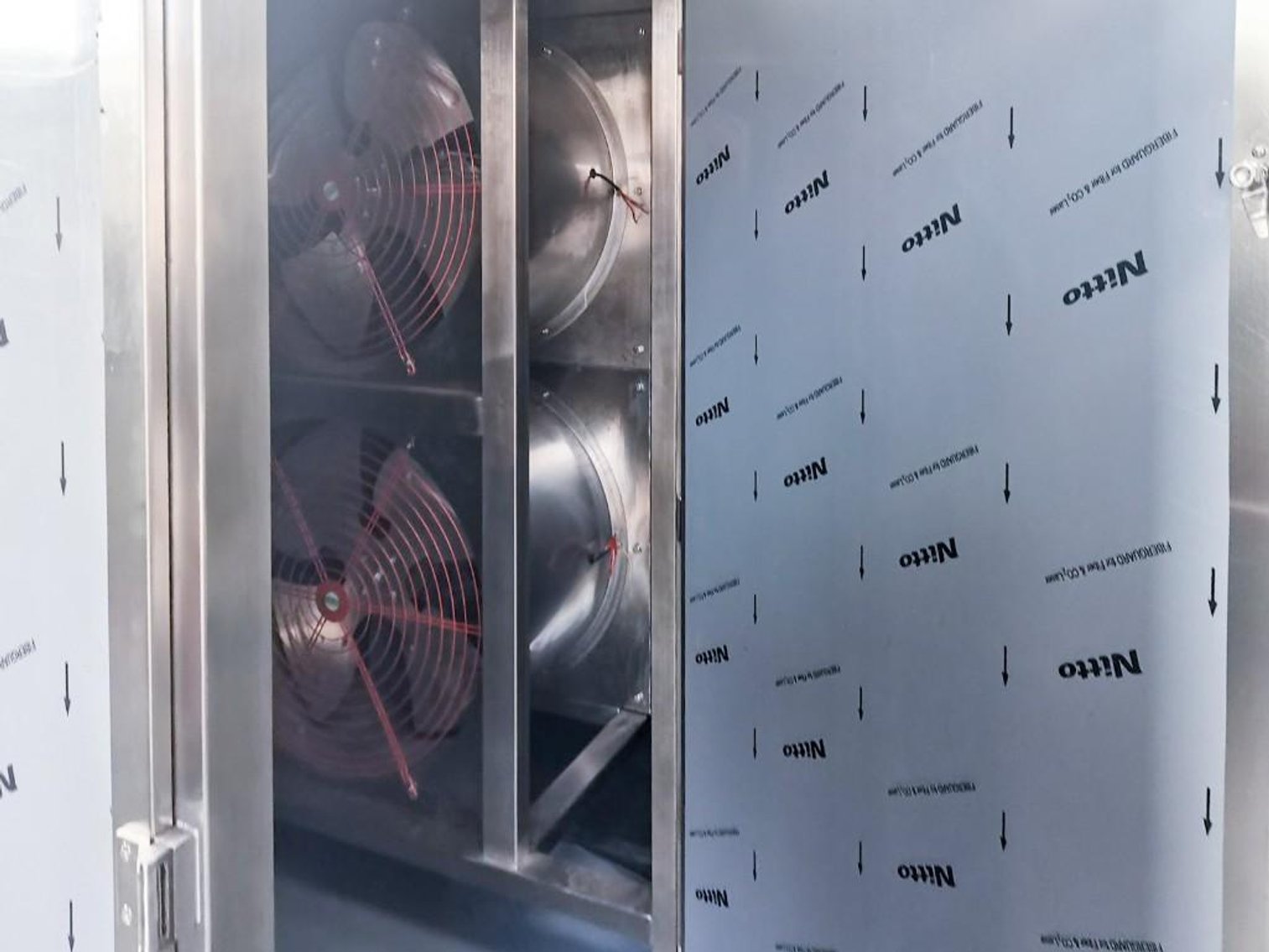

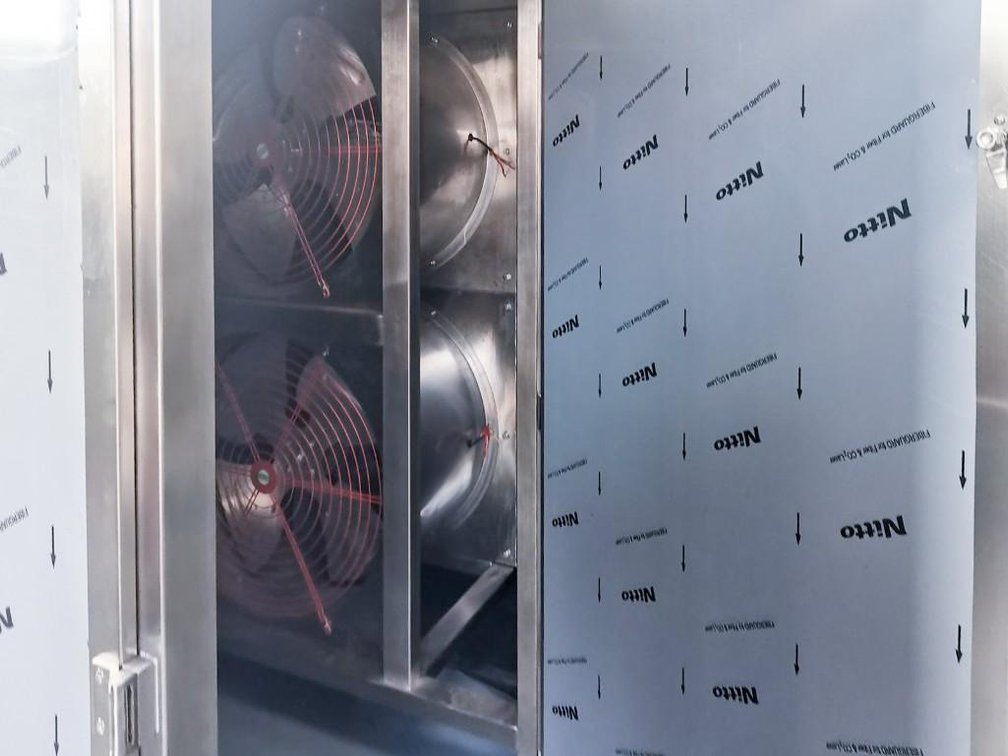

6 - Cooling tunnel upgraded to 20HP
7 - Heated pipe extended down to the hopper
8 - Power supply configured to 480V
9 - Pumps controlled via VFD control system

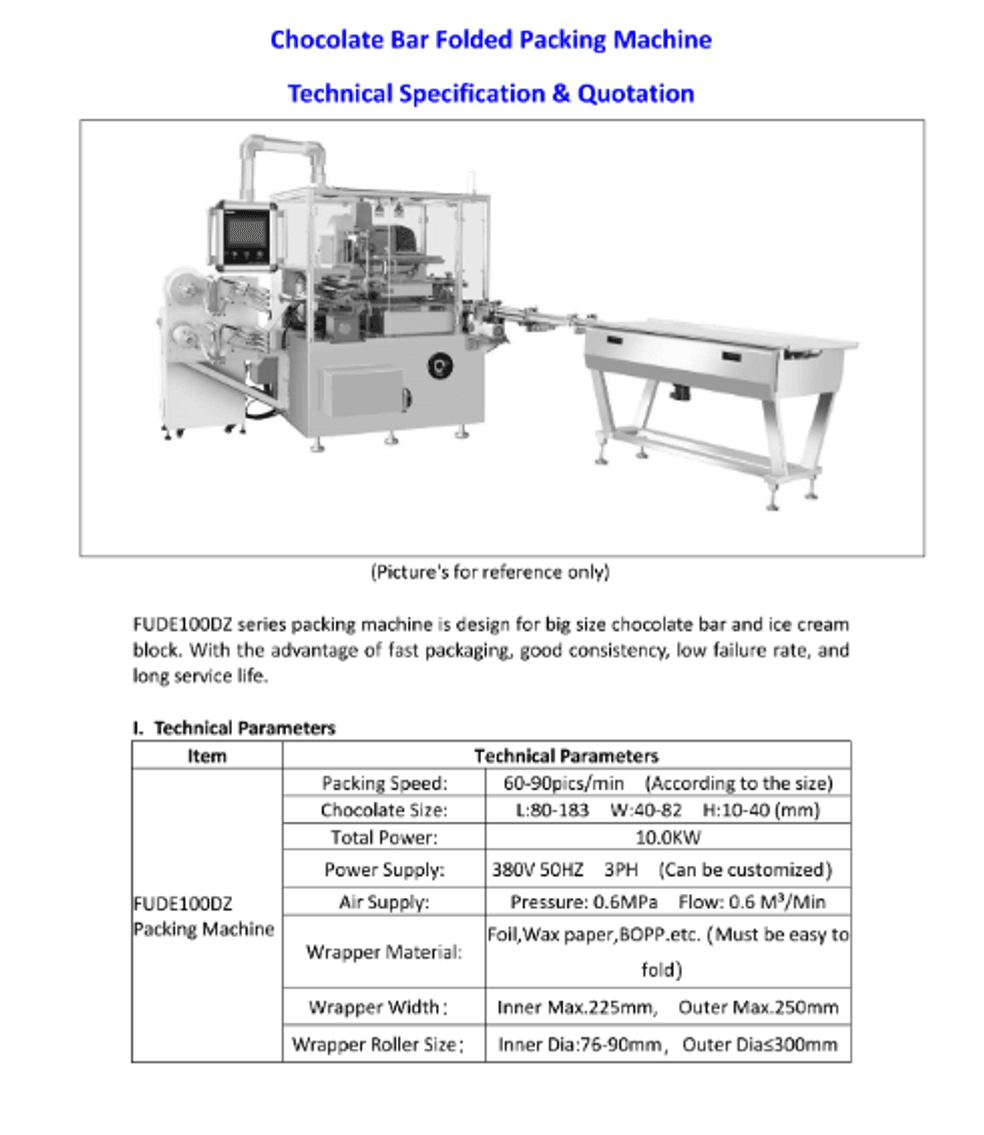

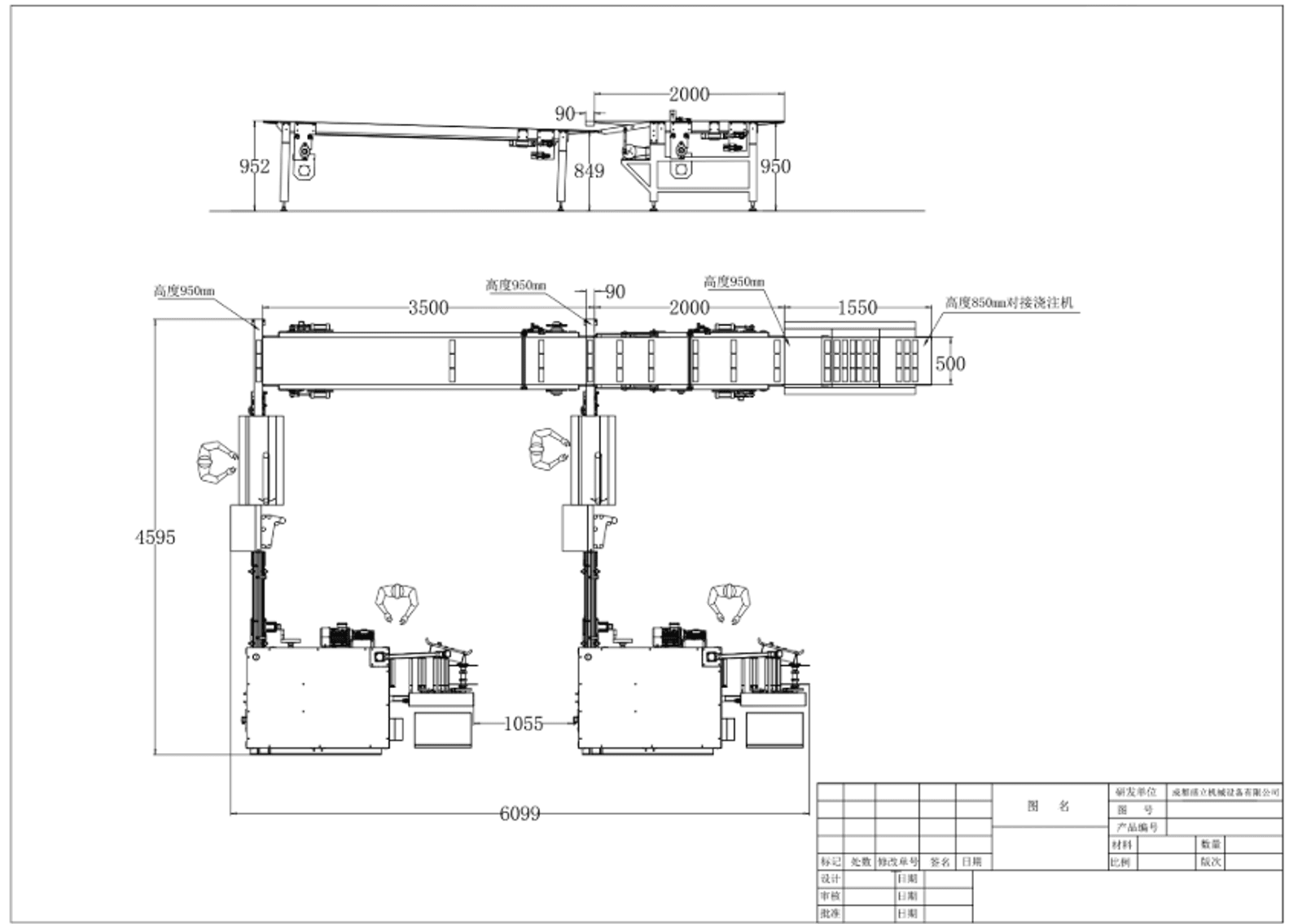

FUDE100DZ Chocolate Bar Folded Packing Machine
FUDE100DZ series packing machine is design for chocolate bars and ice cream blocks. With the advantage of fast packaging, consistency, low failure rate, and long service life.
QUANTITY: 2
Model: FUDE100DZ
Packing Speed: 60–90 pcs/min (depending on product size)
Chocolate Size Range:
Length: 80–183 mm
Width: 40–82 mm
Height: 10–40 mm
Total Power: 10 kW
Power Supply: 380V, 50 Hz, 3 Phase
Air Supply: Pressure: 0.6 MPa Flow: 0.6 m³/min
Wrapper Material: Foil, wax paper, BOPP
Wrapper Width: Inner Max: 225 mm Outer Max: 250 mm
Wrapper Roller Size: Inner Diameter: 76–90 mm Outer Diameter: 300 mm

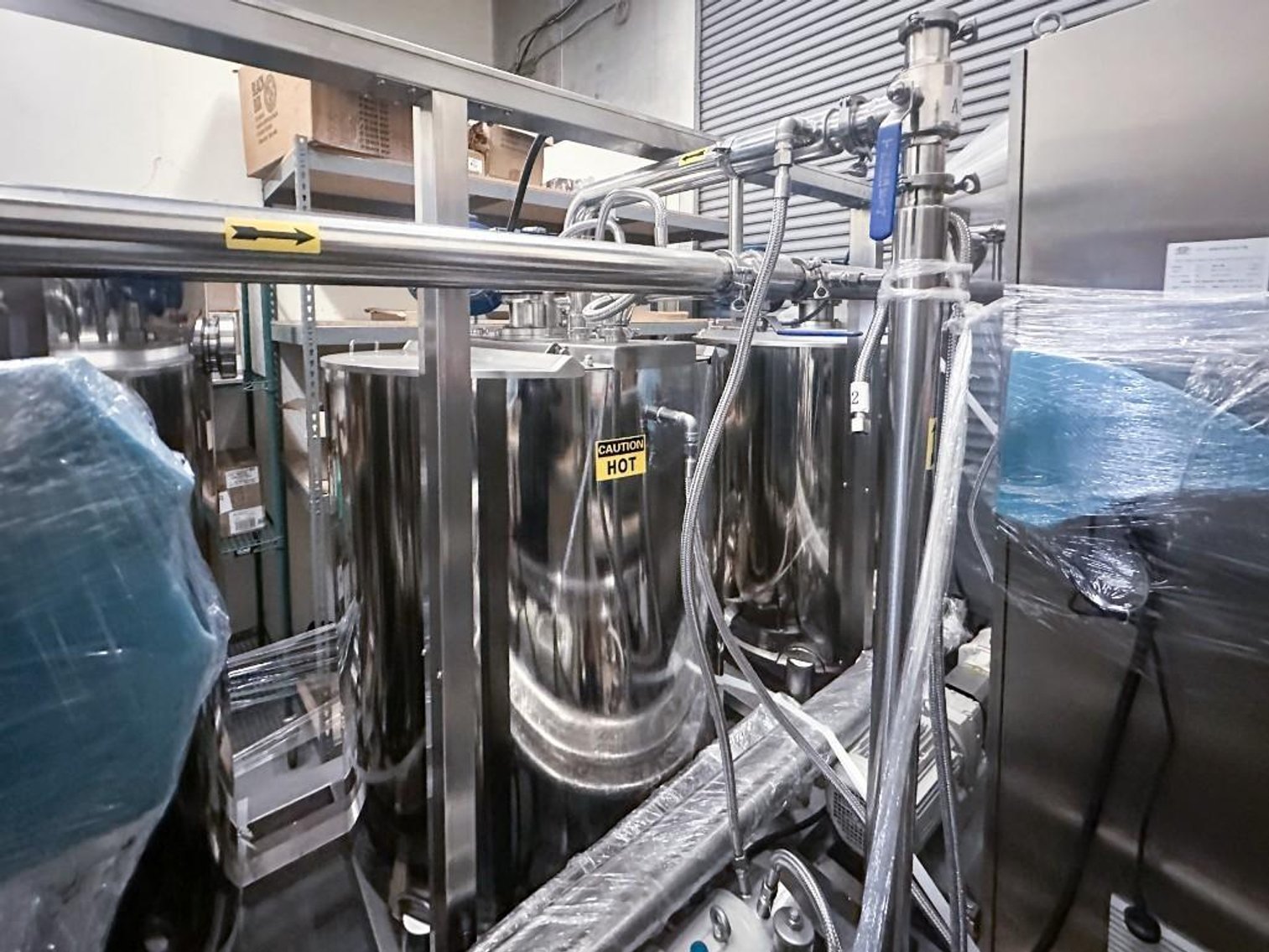

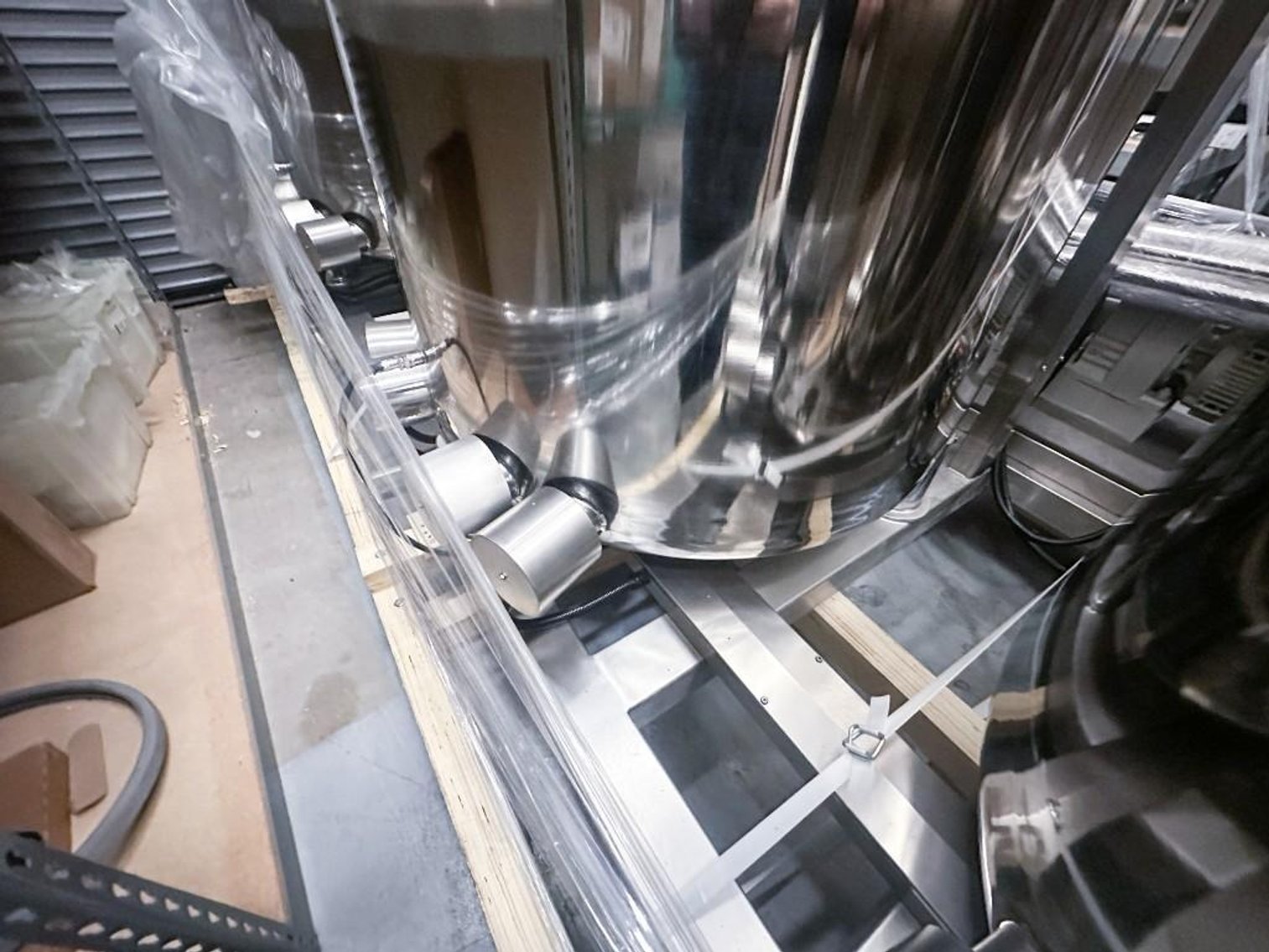

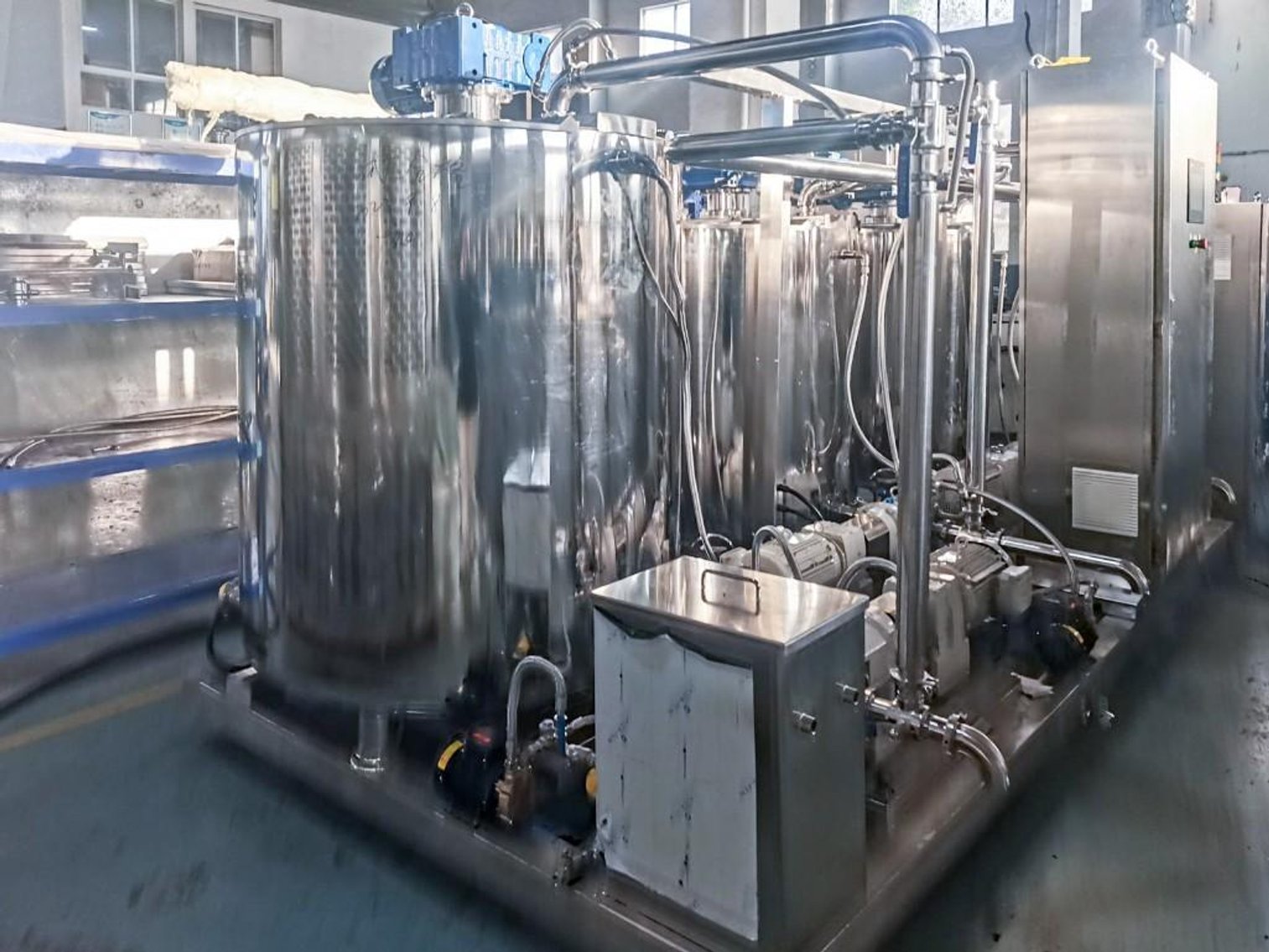

CBW500 Chocolate Storage Tank and pump skid with control panel

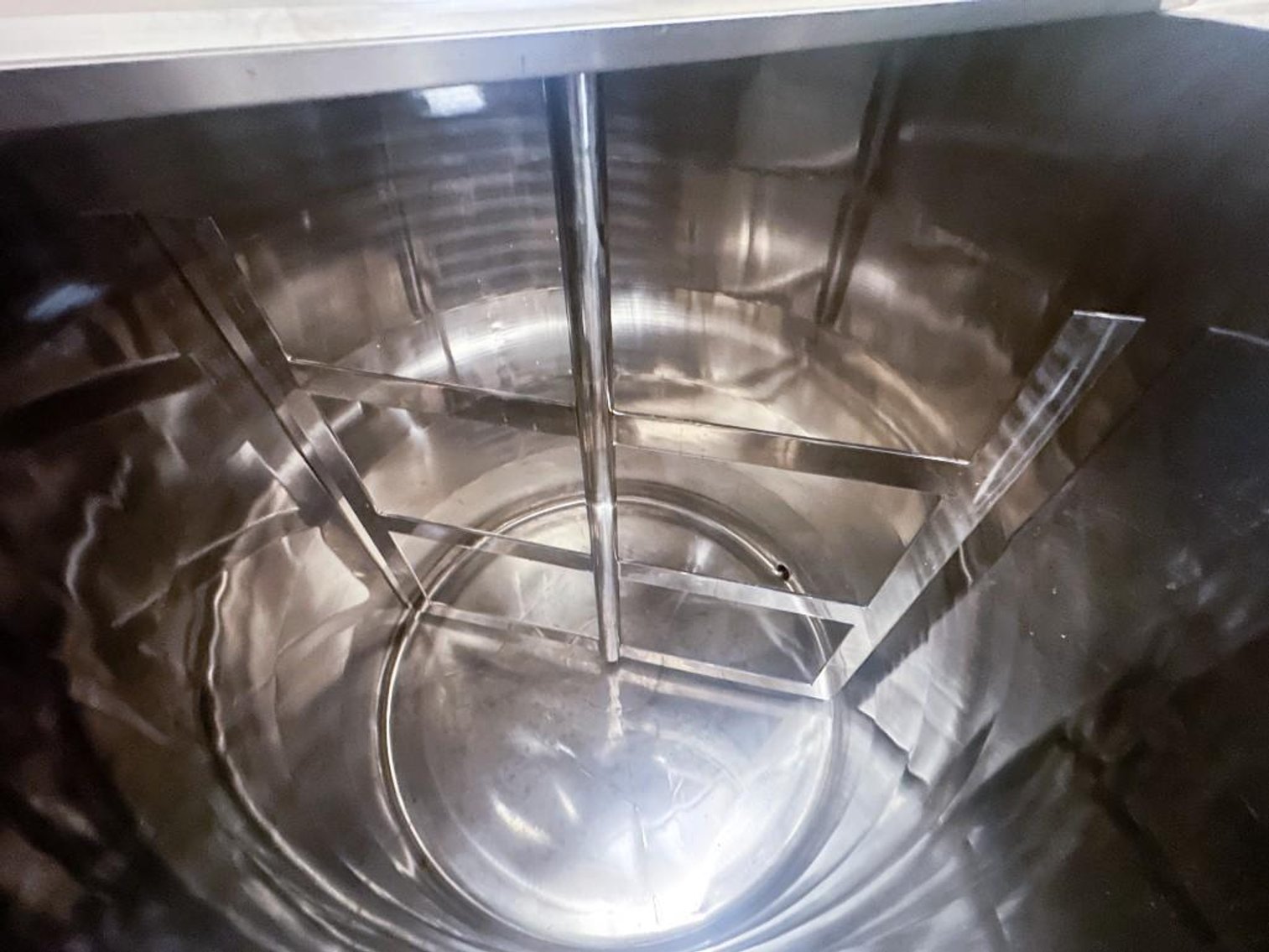

The CBW500 system offers continuous mixing, heating and feeding of chocolate product to the CJZ510-2 Dual-head depositor. It consists of 3 mixing tanks and 3 CCP25C-A product feeding pumps secured to one stainless steel skid platform. The system also has a dedicated control panel to manage the operation of the system. The tanks' heating coils have been upgraded to four coils instead of two to heat the product faster and keep the heat consistent.
QTY: 3 Tanks
Model: CBW500
Capacity: 500 L
Motor Power: 1.5 kW
Heating Power: 4 kW
Dimensions: Ø1000 × 1380 mm
Weight: 500 kg

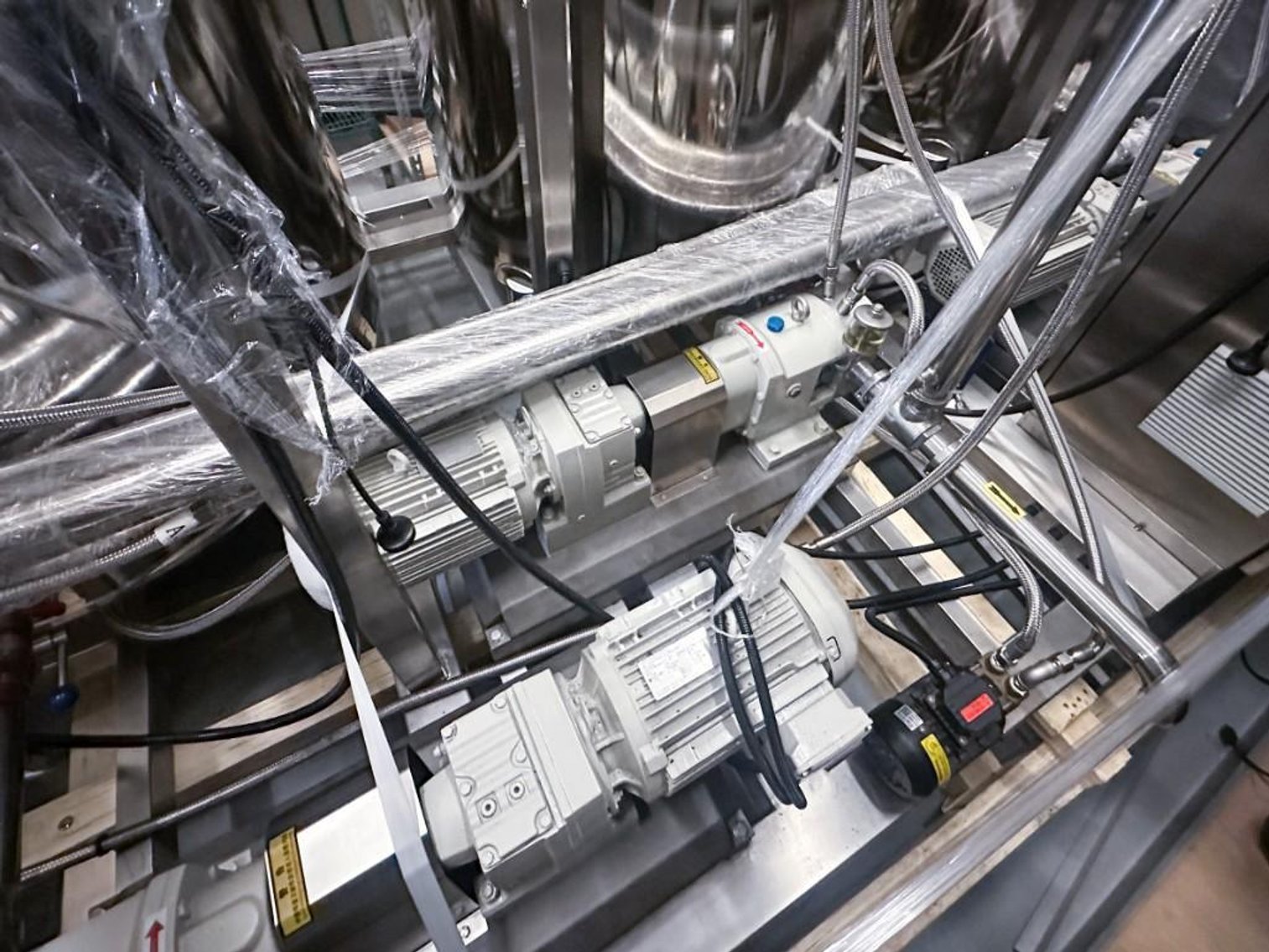

Pumps: Durrex

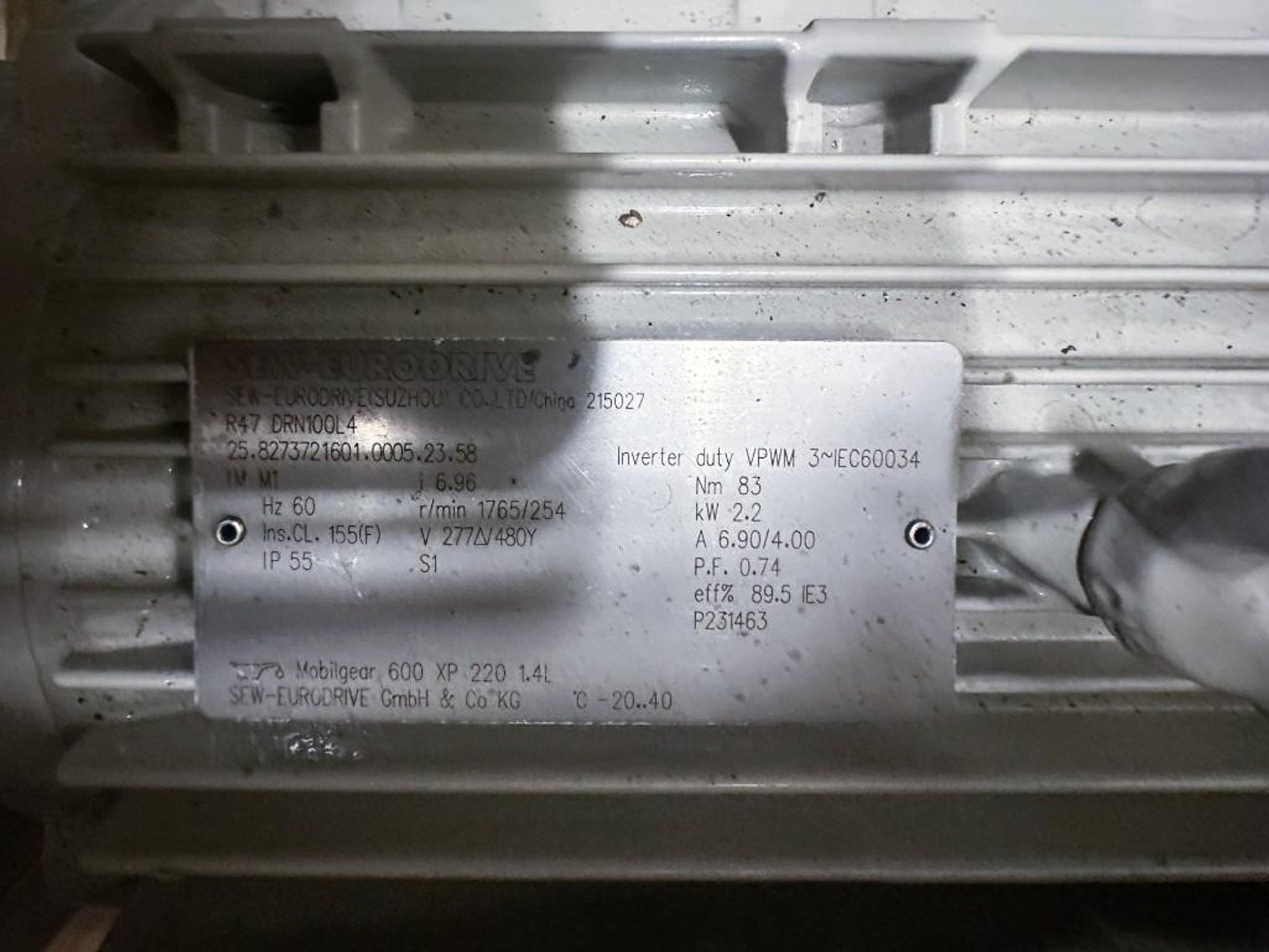

Motors: SEW Eurodrive

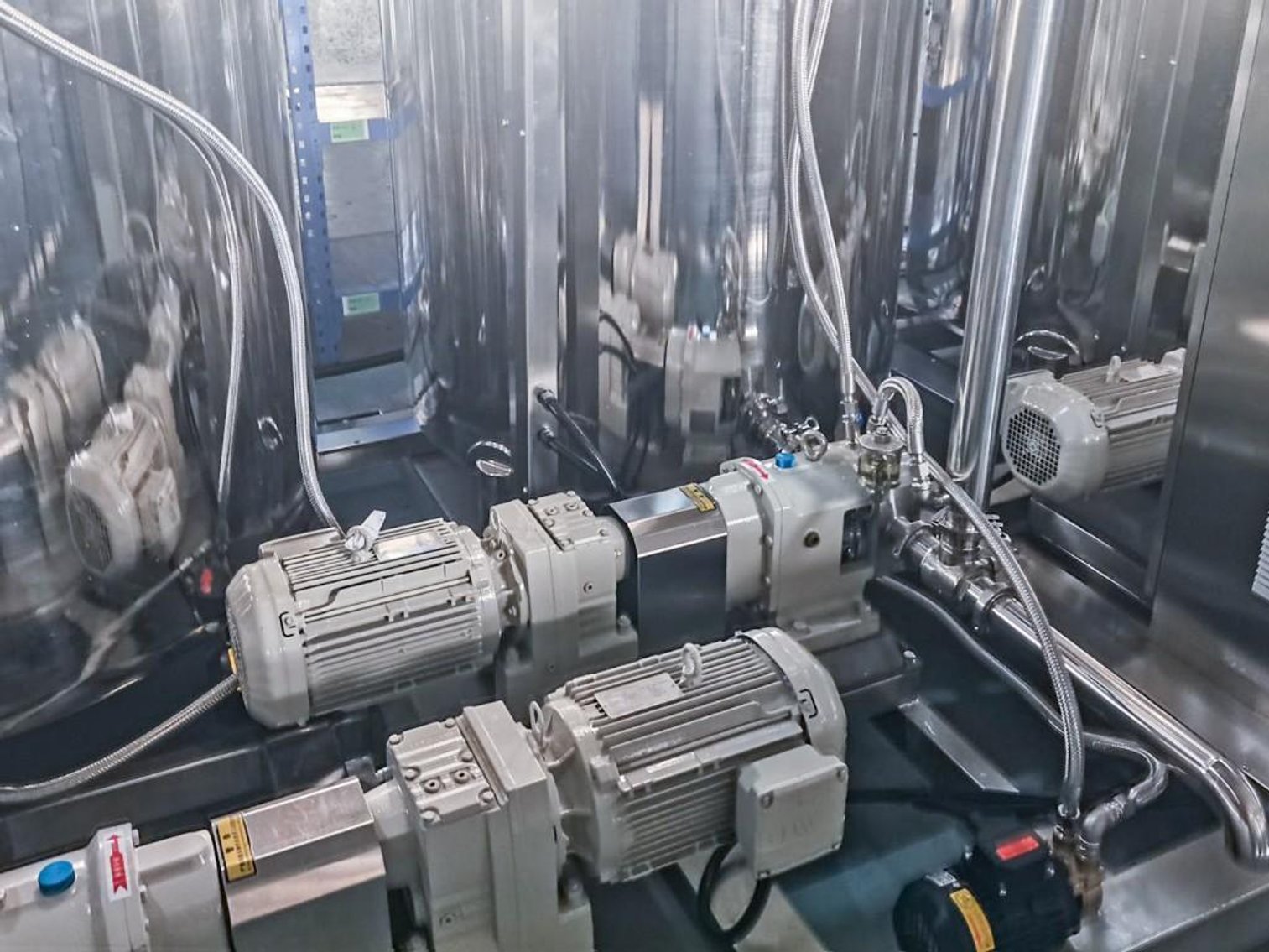

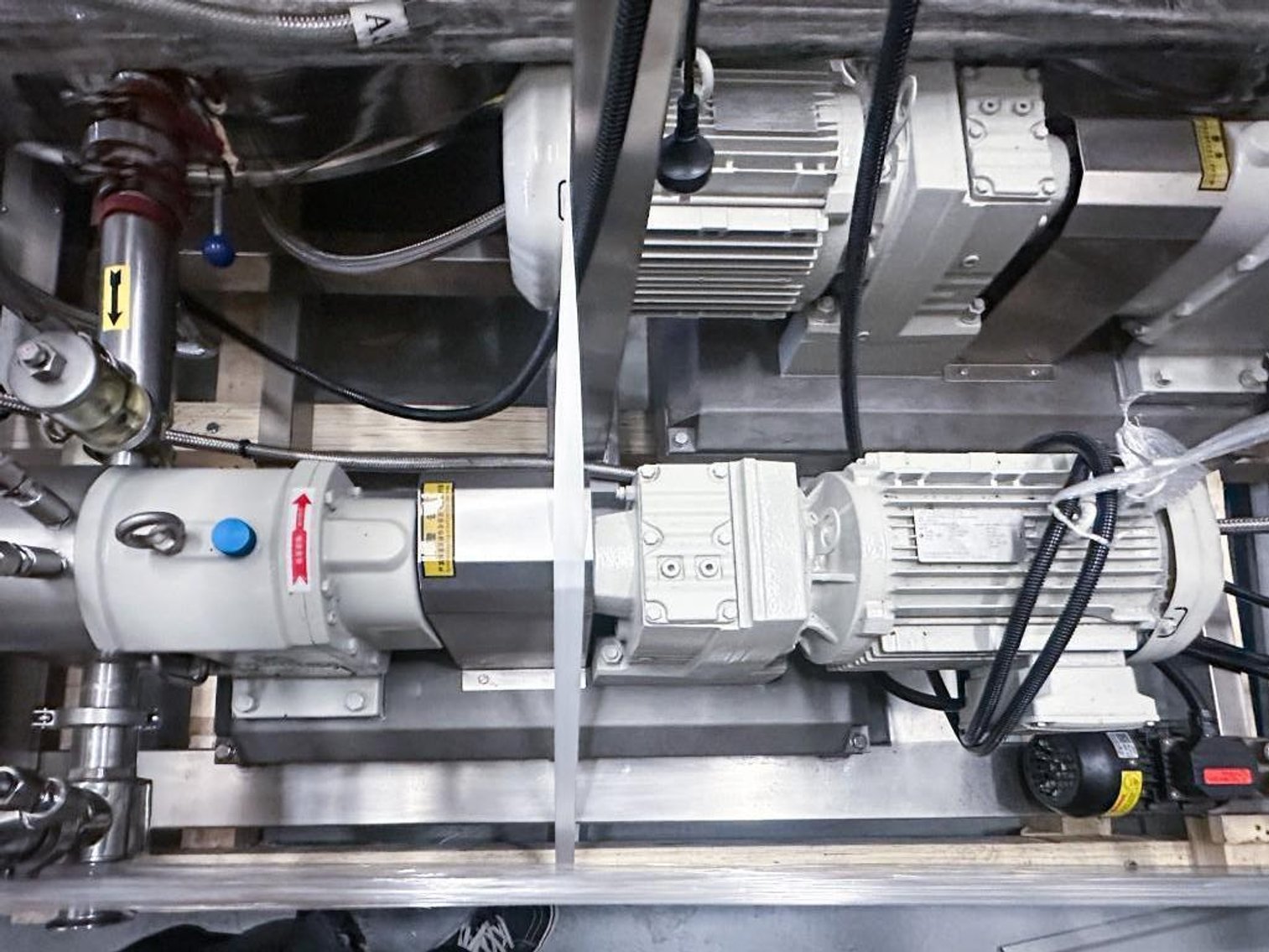

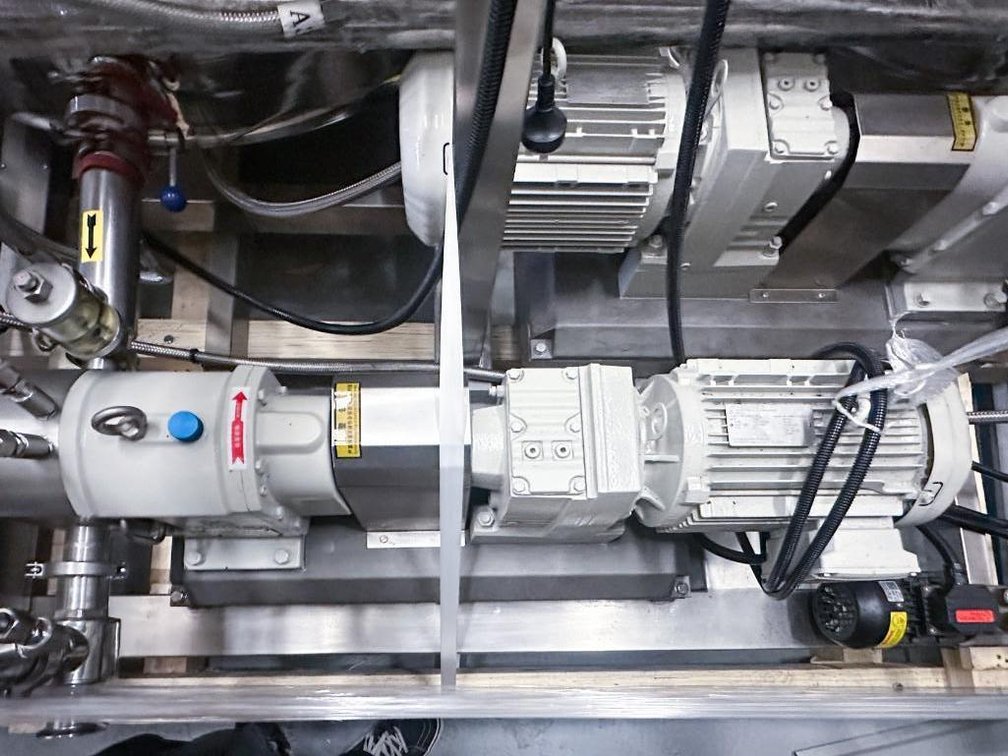

CCP25C-A Product feeding pump
This pump is mainly used for transferring and conveying chocolate, pastes, and other paste products - has circulating heat insulation.
Technical Parameters:
QTY: 3
Flow rate: 25L/min
Delivery lift: 8m
Caliber: 1 inch
Power: 0. 7 .5 Kw
Weight: 80Kg
Dimensions:700*300*400mm
Stainless Steel 304 pump
Location: Gardena, CA
