Details

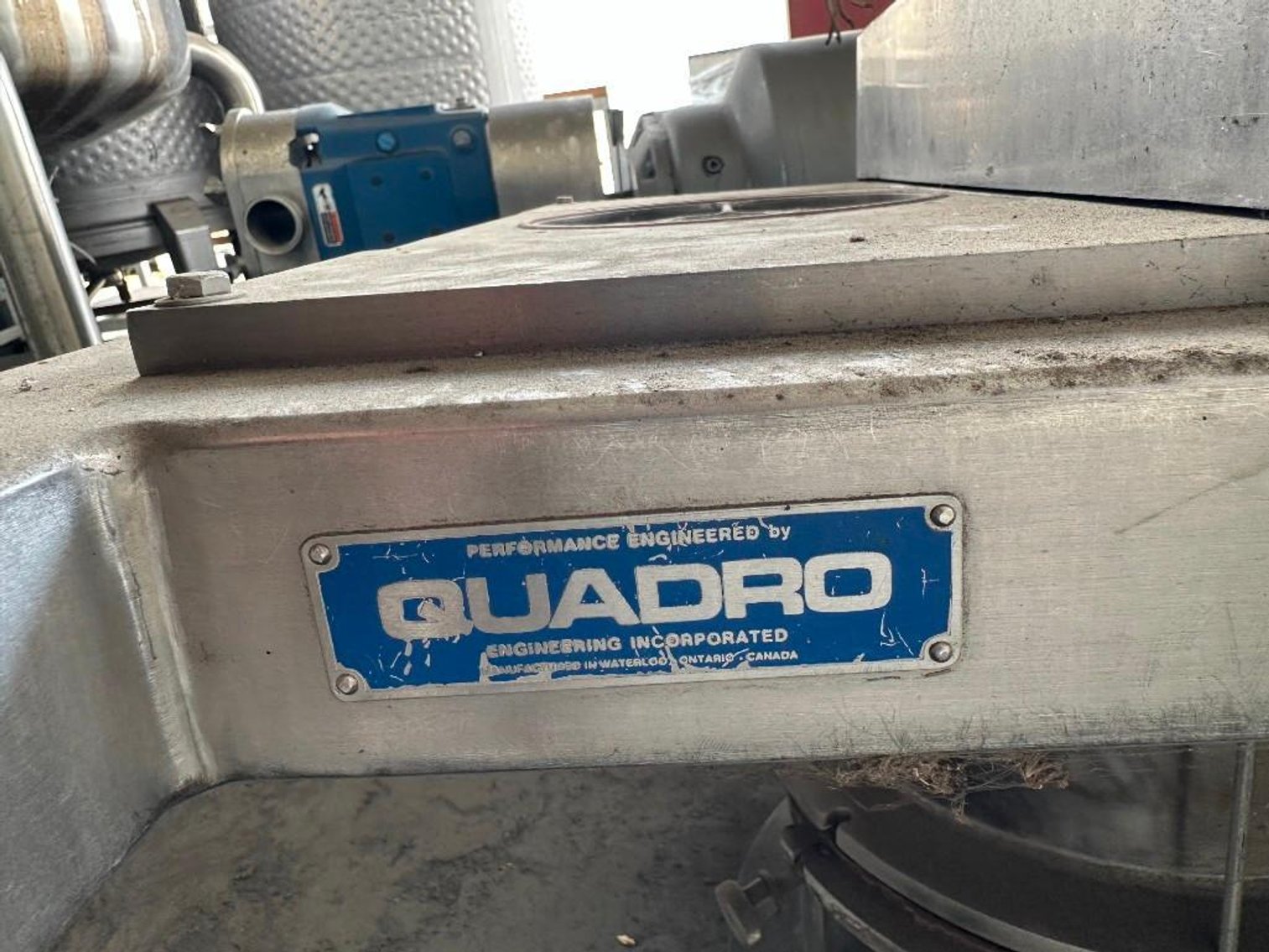

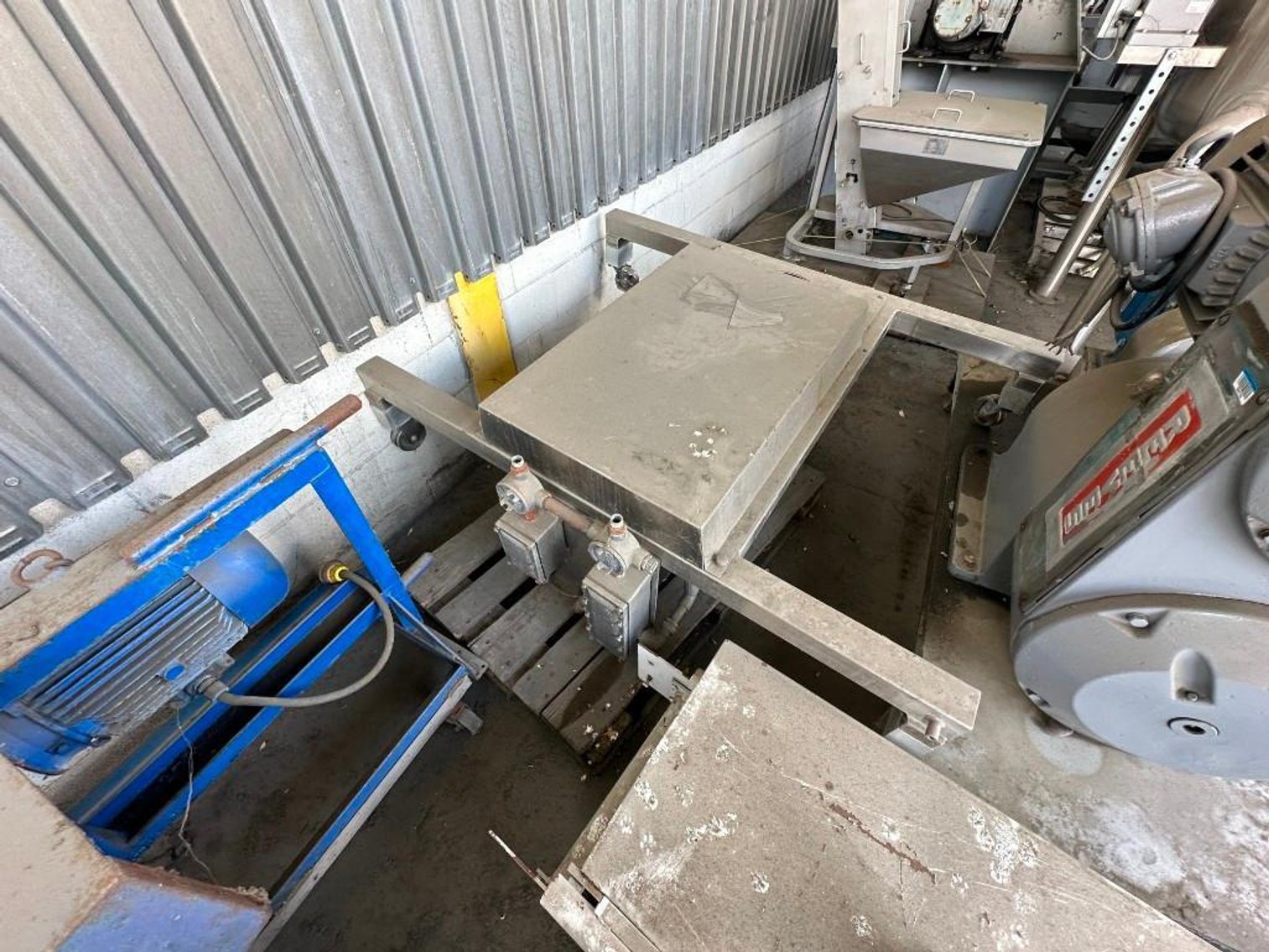

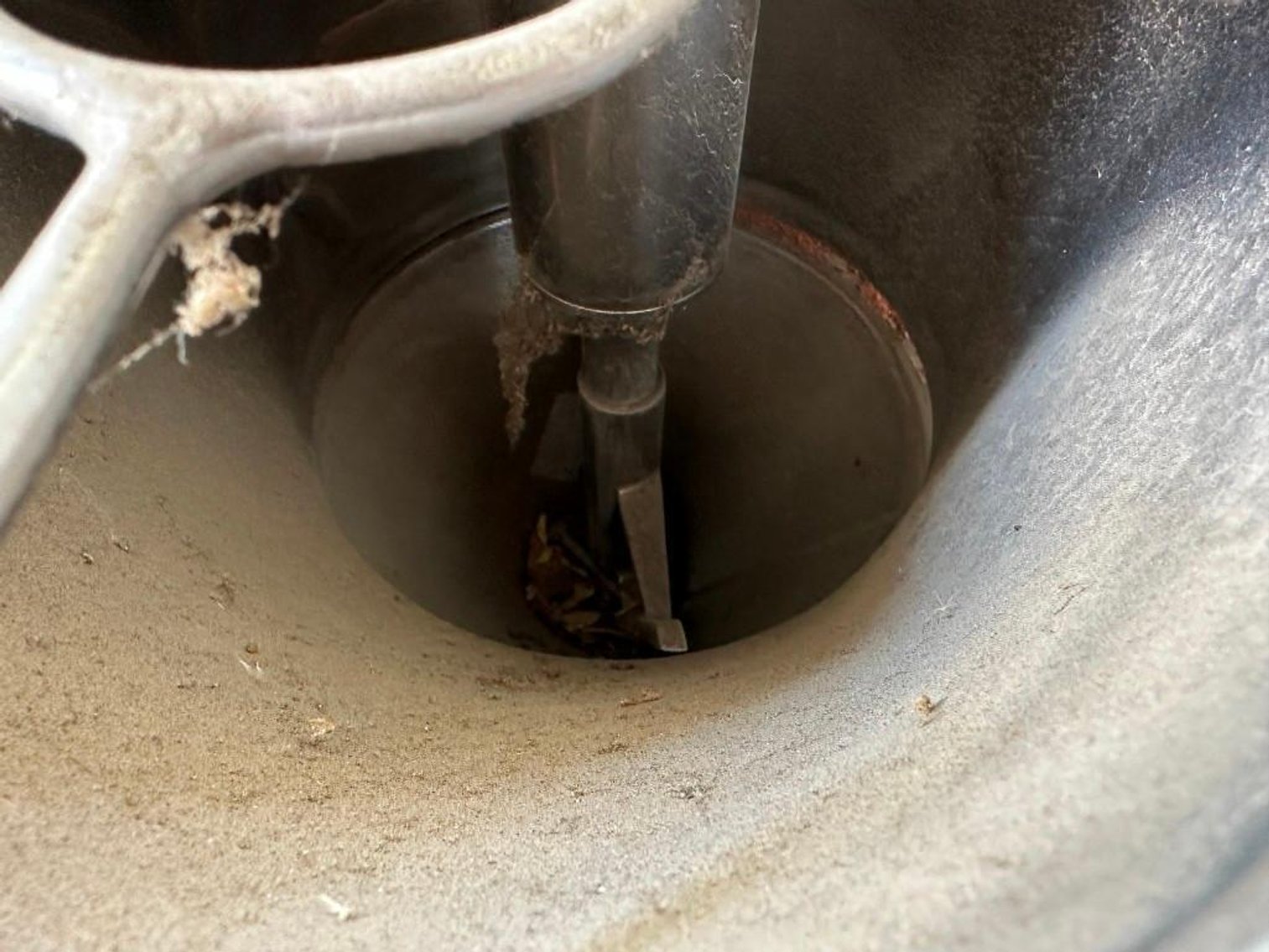

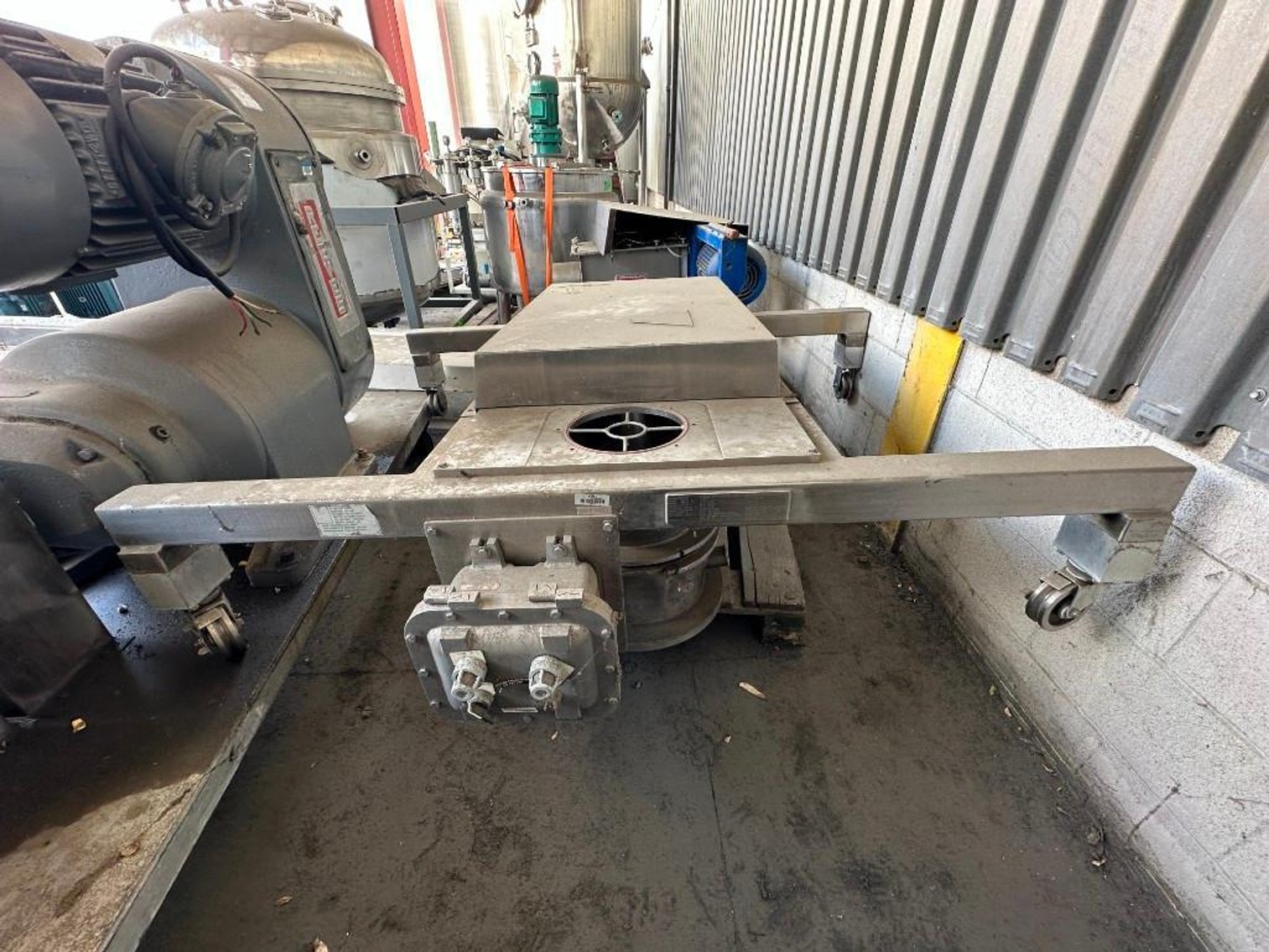

1 – Quadro Comil 196S
MDL: 196S

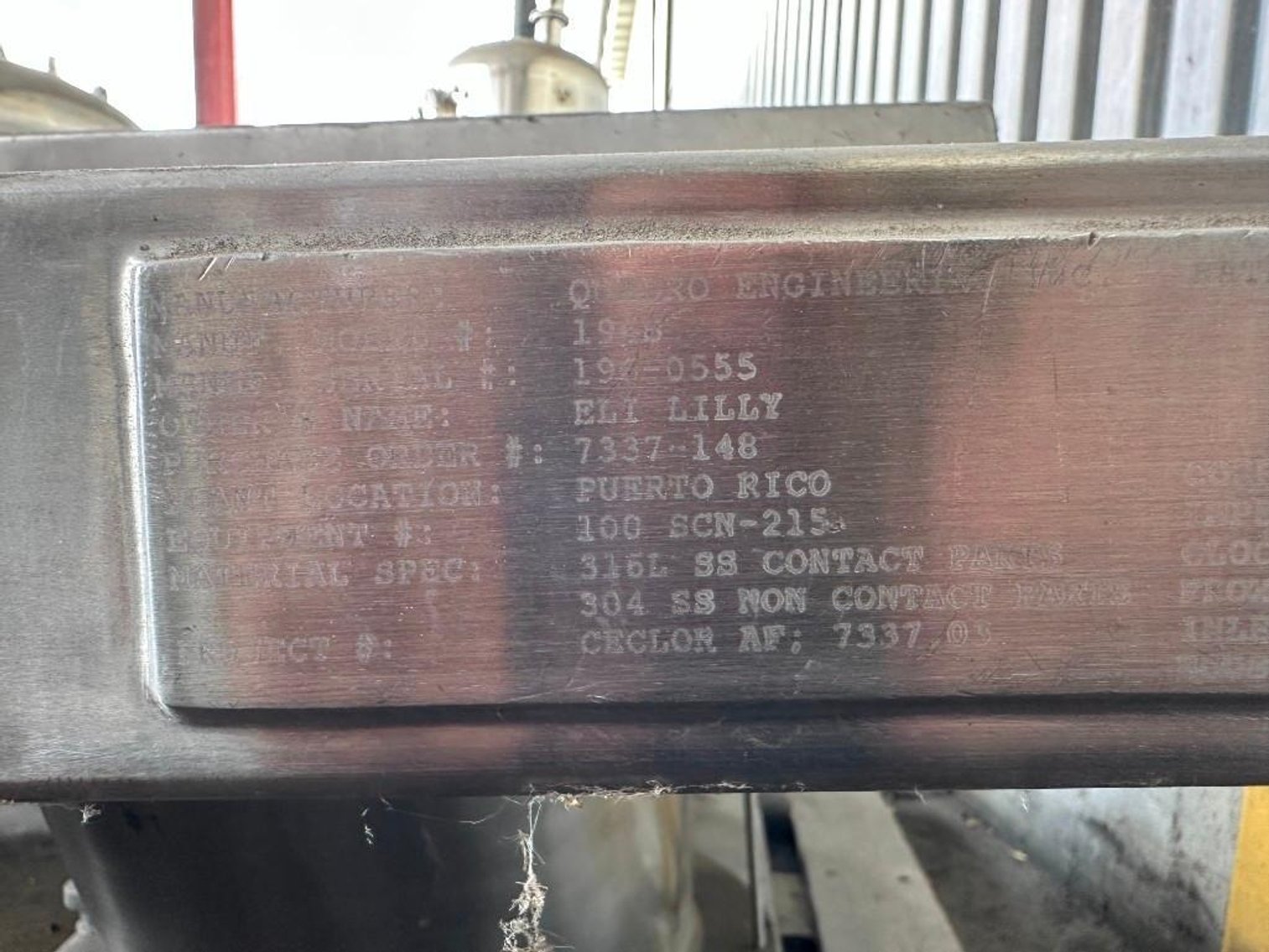

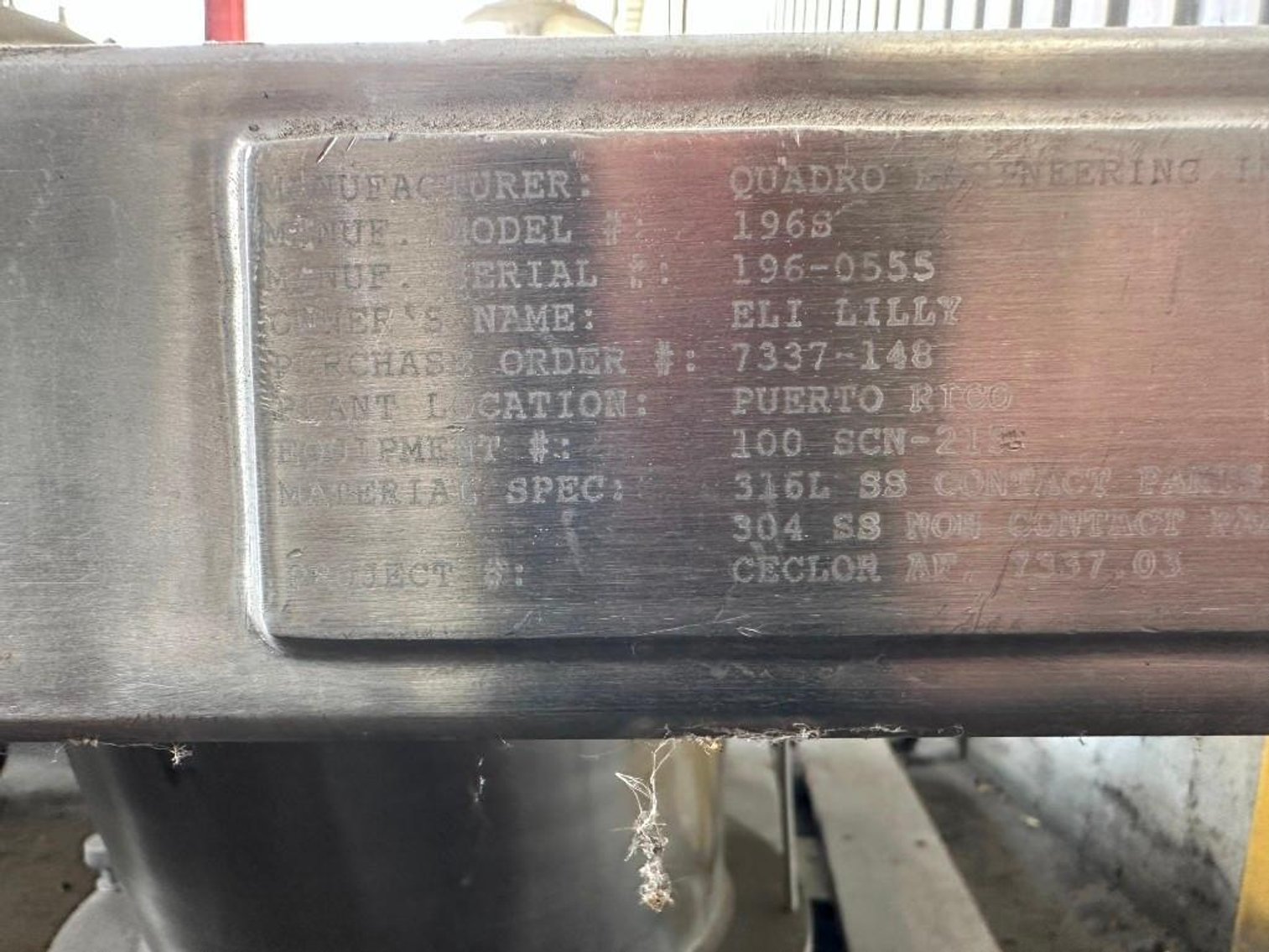

S/N: 196-0555

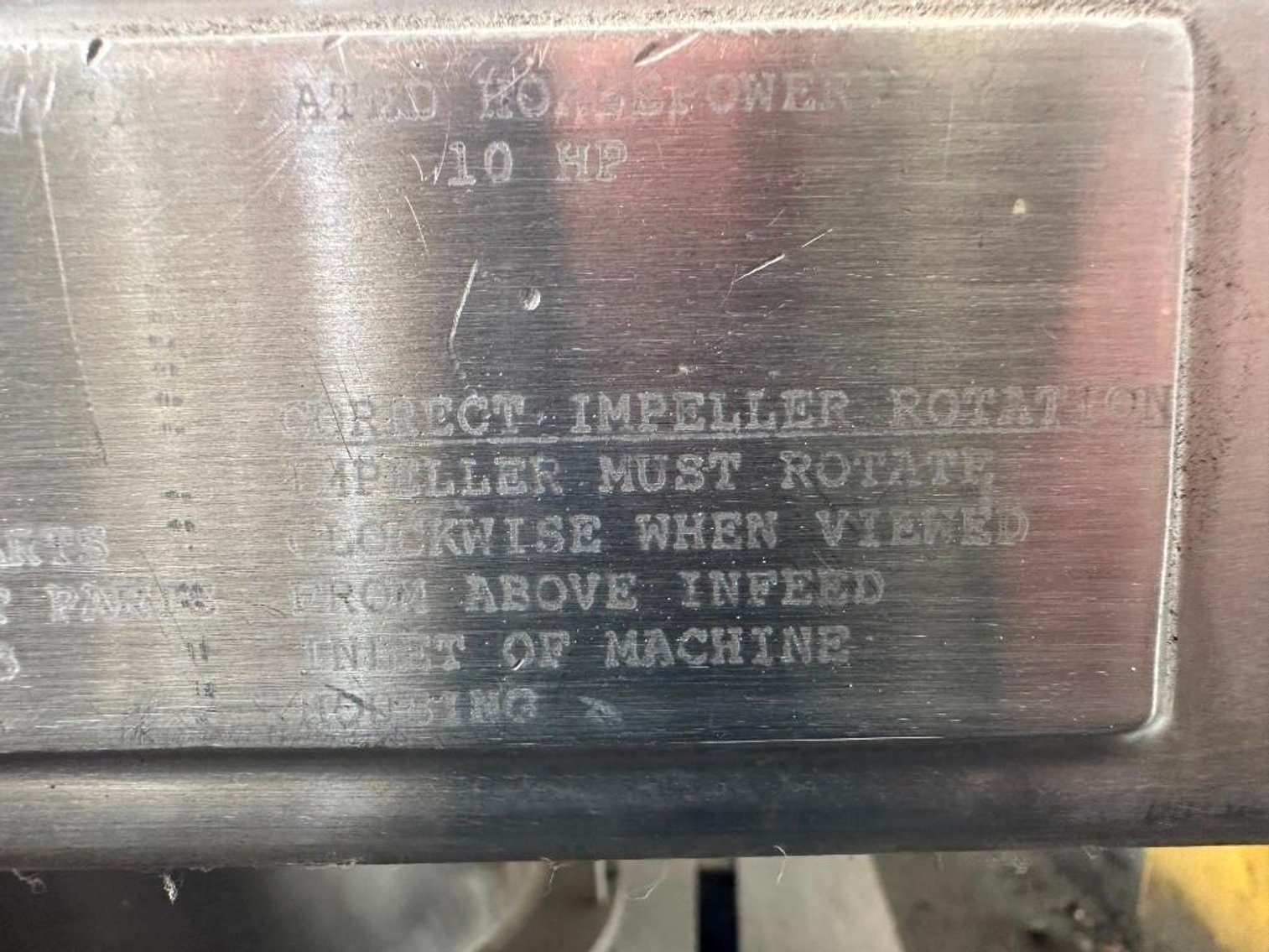

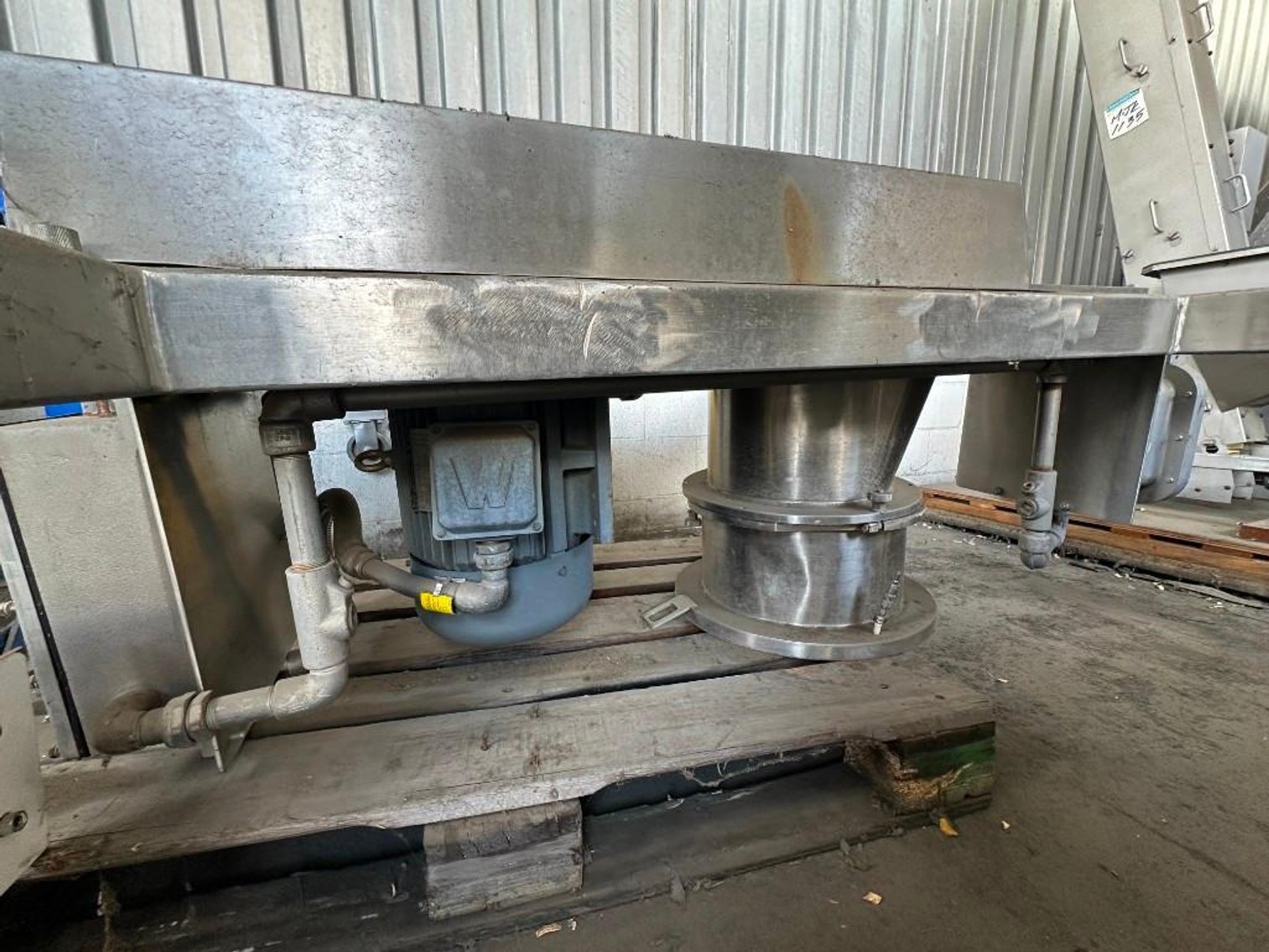

Motor: 10 HP
Contact Parts: 316 Stainless Steel
Non-Contact Parts: 304 Stainless Steel
Performance Specifications
- Scale-Up Factor: 10
- Wet (375Q / 9.5 mm): 2,200 kg/hr (4,800 lbs/hr)
- Dry (094R / 2.4 mm): 3,500 kg/hr (7,716 lbs/hr)
- Dry (040G / 1.0 mm): 800 kg/hr (1,764 lbs/hr)

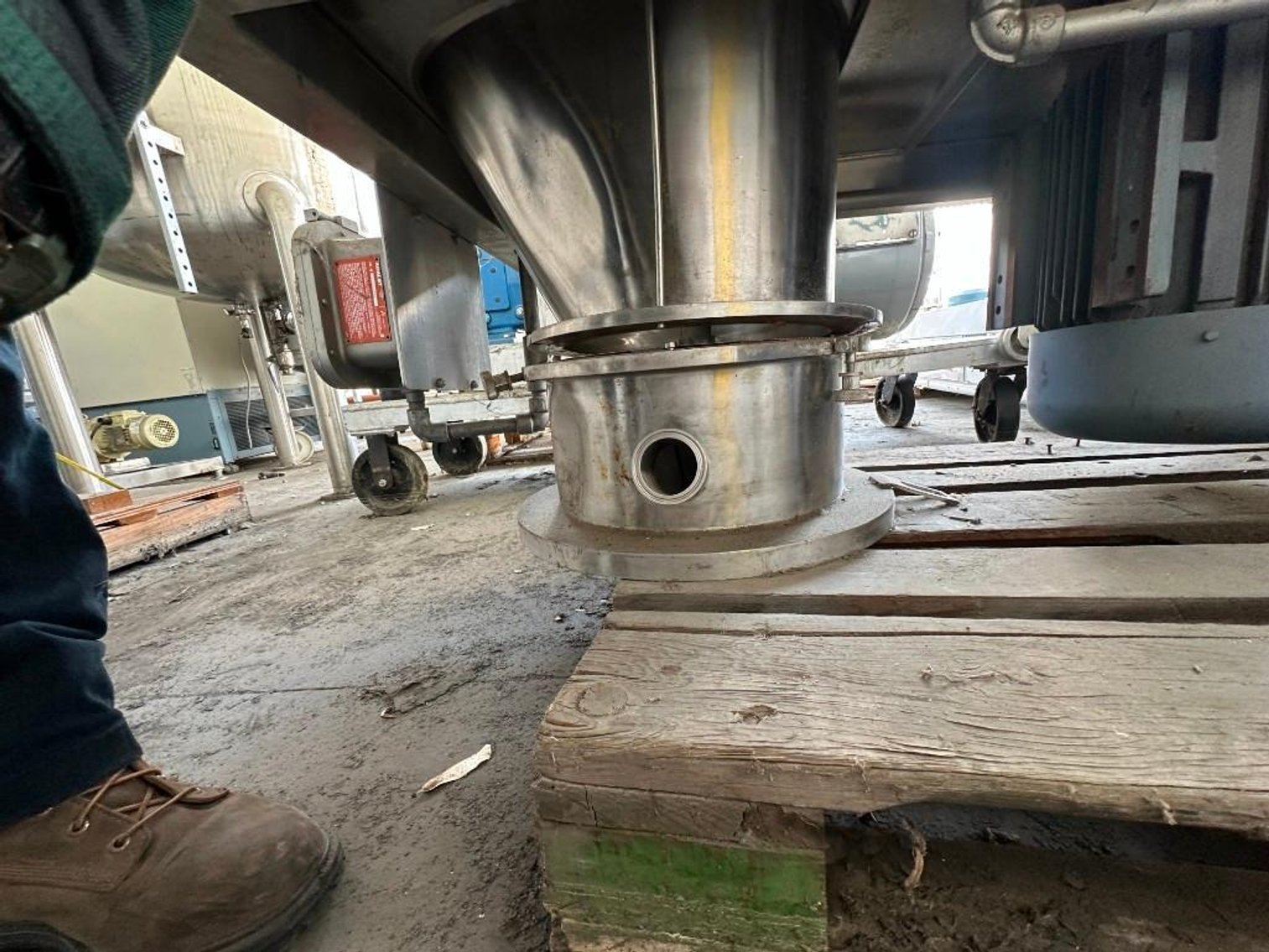

- Inlet Diameter: 203 mm (8 in)
- Outlet Diameter: 356 mm (14 in)
Description
The Quadro® Comil® 196S Overdriven Series delivers high throughput, precise particle size control, and reduced waste—all at a lower cost of ownership. Renowned for its proven performance and versatility, this high-efficiency milling system is trusted across a wide range of industries.
Features & Benefits
- Higher Capacities: Steady-state milling enabled by choke/flood feeding capability.
- Low Heat Generation: Ideal for processing materials with low melting points.
- Reduced Dust: Minimizes the need for dust collection and explosion retention systems.
- Consistent Particle Size: Achieves precise, uniform granulometry.
- User-Friendly Design: Easy screen changes, simple cleaning, low maintenance, and flexible feeding options.
