Details

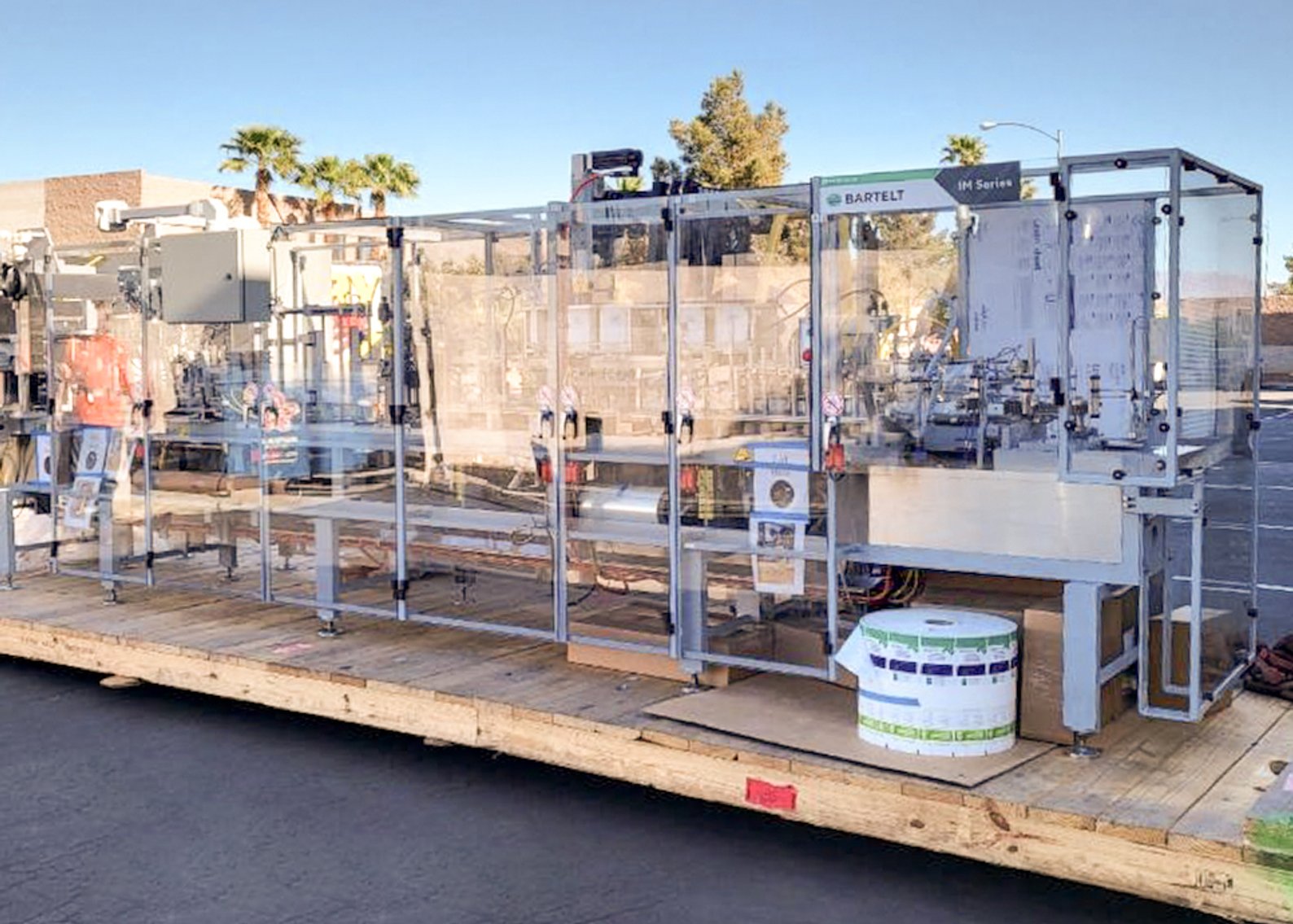

1- NEW / UNUSED Bartelt® Machine Model IM-7
MDL: IM-7
Capabilities
Pouch Formats:
Pouch Width: 2.00” – 5.75” (51 – 146 mm)
Pouch Height: 2.00” – 9.50” (51 – 241 mm)
Gusset: Up to 2.25” (Up to 64 mm)
Maximum Pouch Weight: 16 oz (455 g)
Max Mechanical Speed (poucher only): 100 cycles/min
Packaging Material Specifications

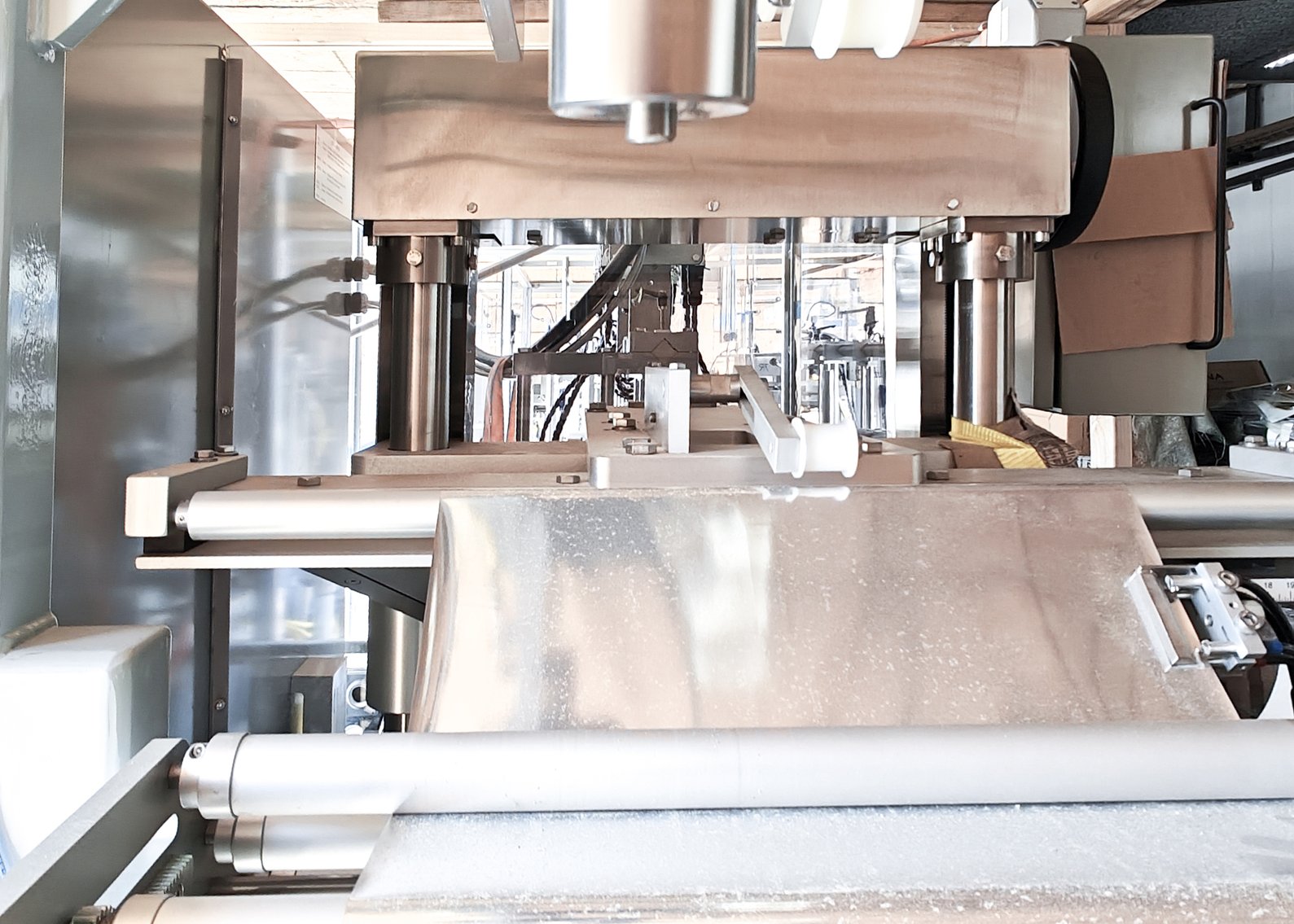

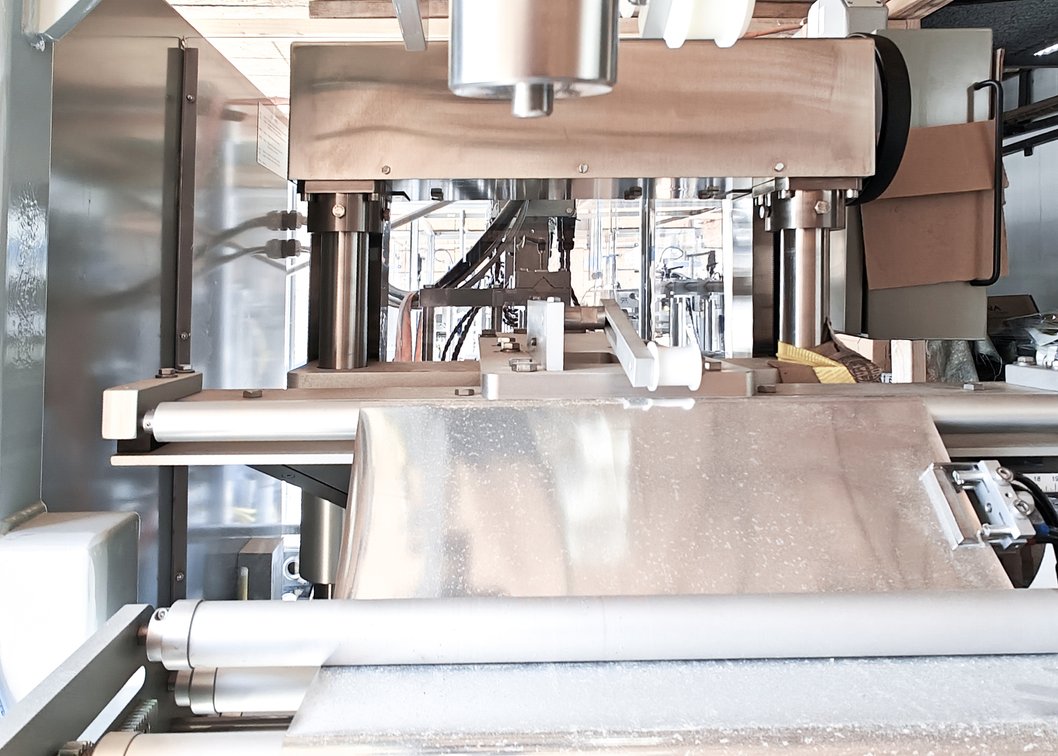

Film Web
Maximum Web Width: 21.00” (533 mm)
Roll Core ID: 3.00” (76 mm)
Maximum Roll OD: 24.00” (457 mm)

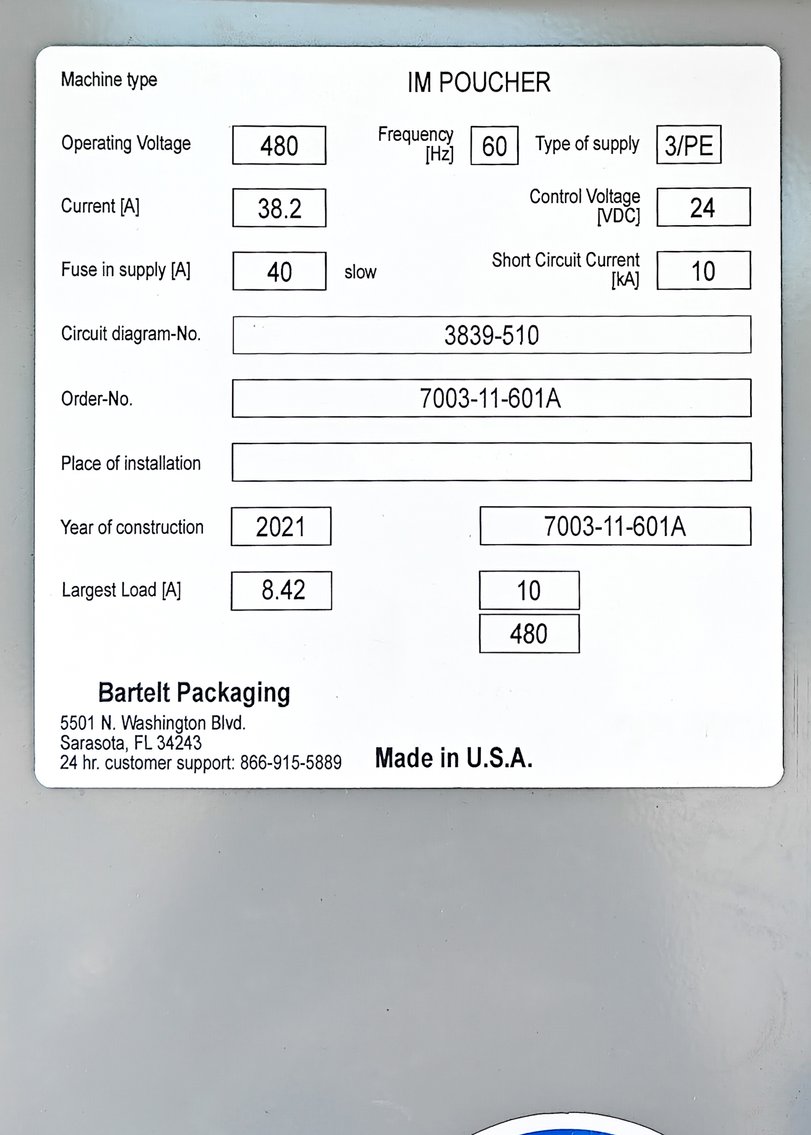

Utility Requirements
Electrical
Power: 480 VAC / 3-Phase
Frequency / Load: 60 Hz / 40 Amps
Control Voltage: 24 VDC
Water (Cooling – application dependent)
Required for certain film structures and pouch configurations
Flow: 2 gpm (7.6 L/min)
Temperature: 32°F – 50°F (0°C – 10°C)

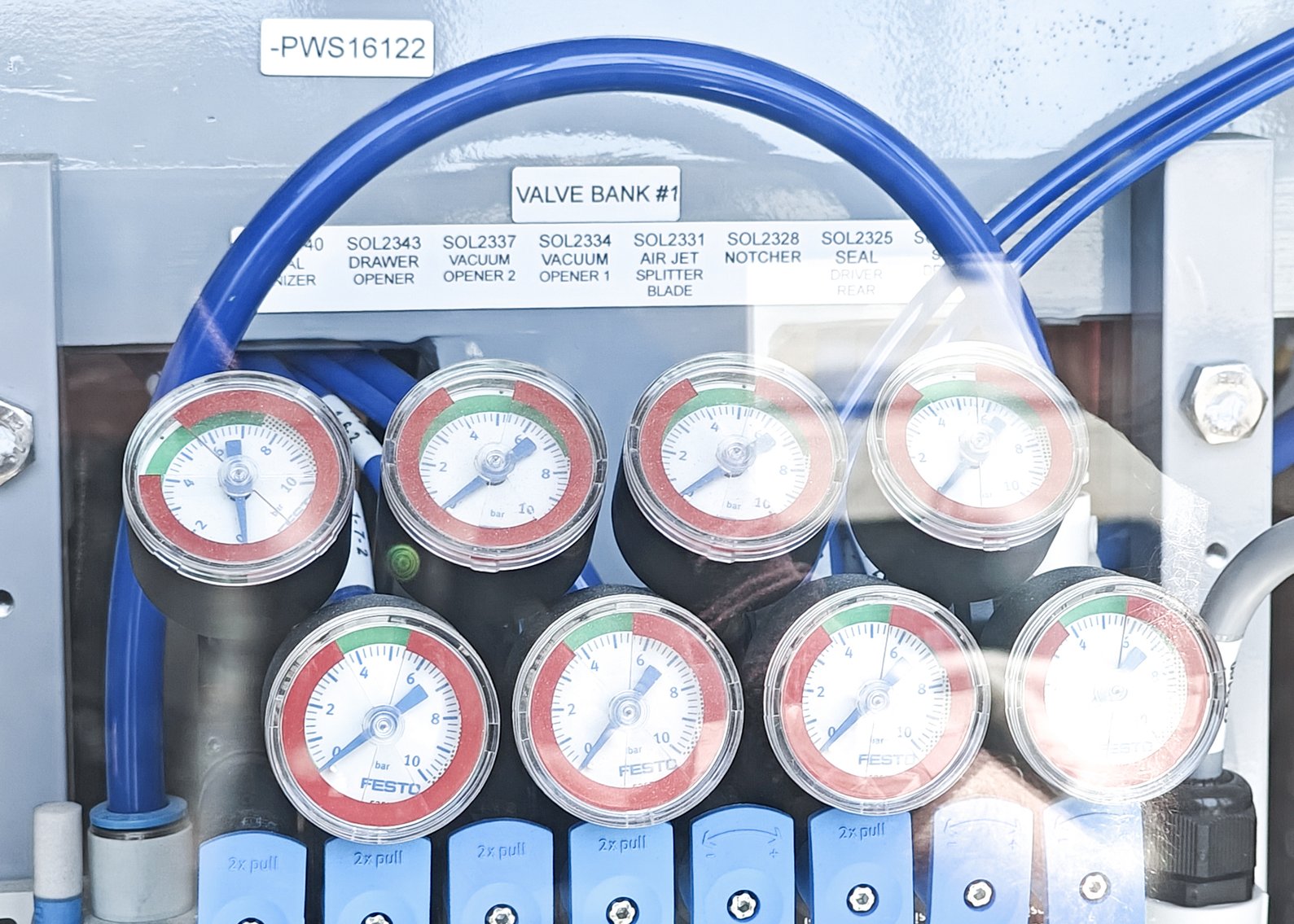

Compressed Air
Consumption: 20 SCFM (565 L/min)
Pressure: 80 PSI (6 bar)
Usage varies by application

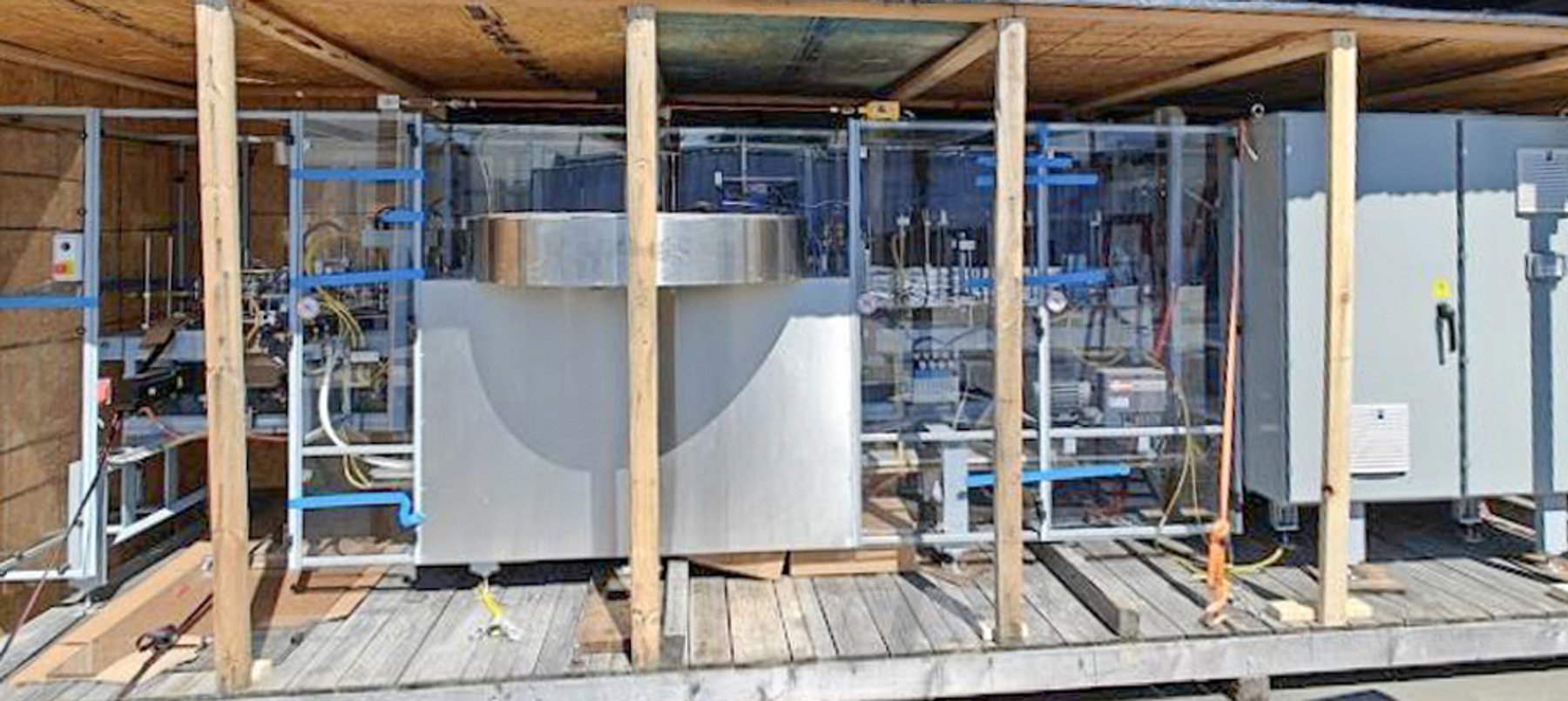

Location: Buena Park, CA
