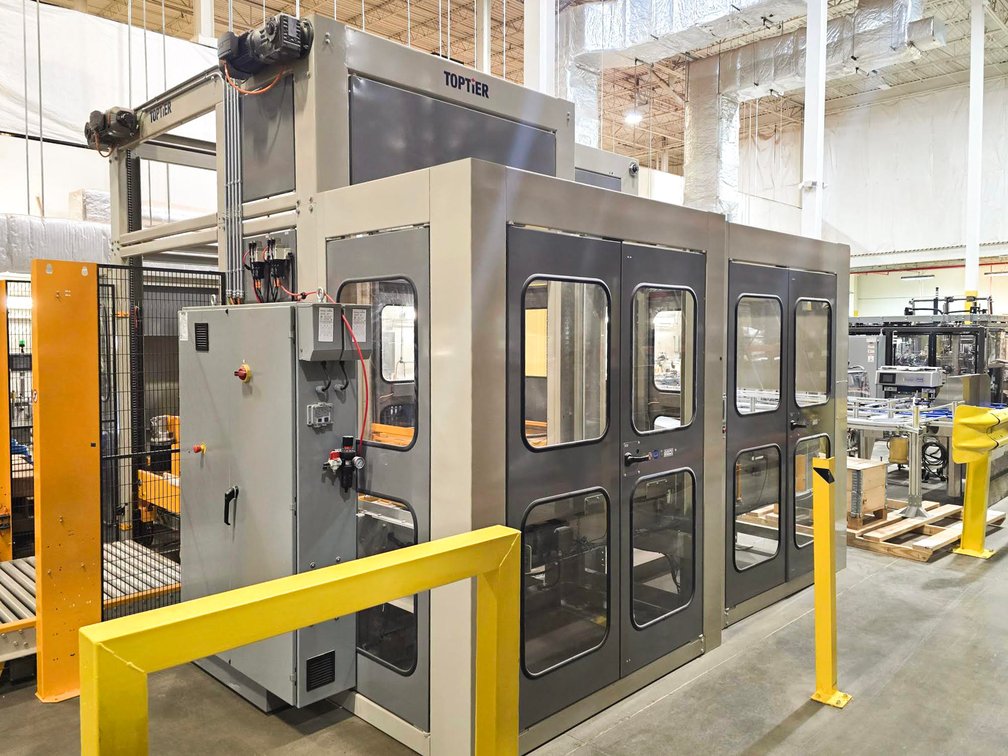

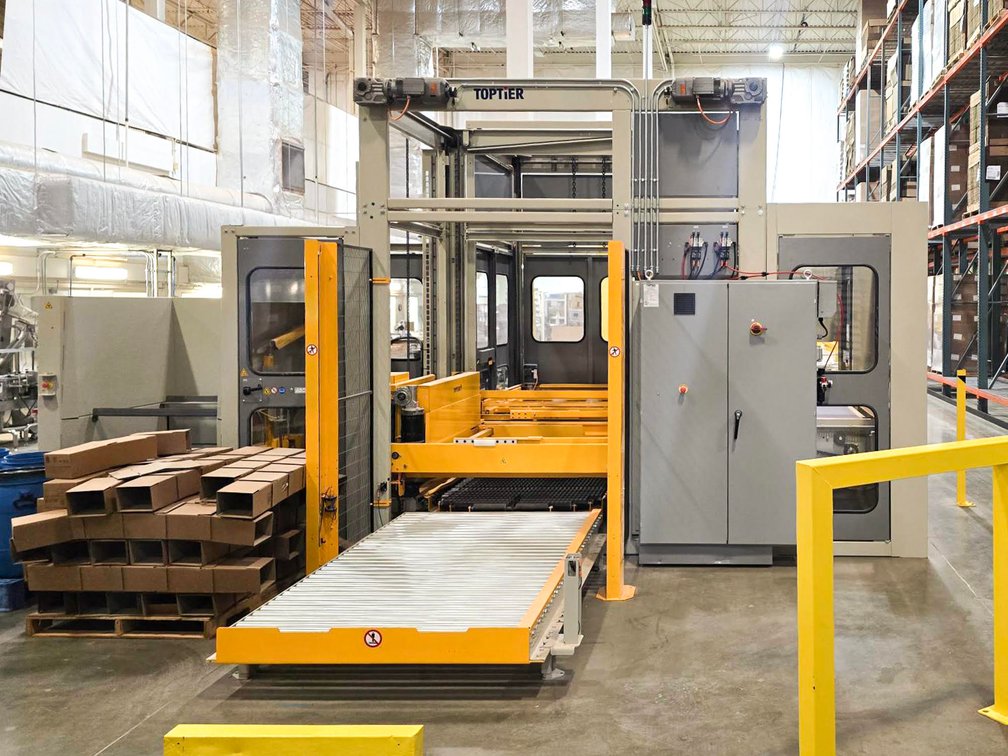

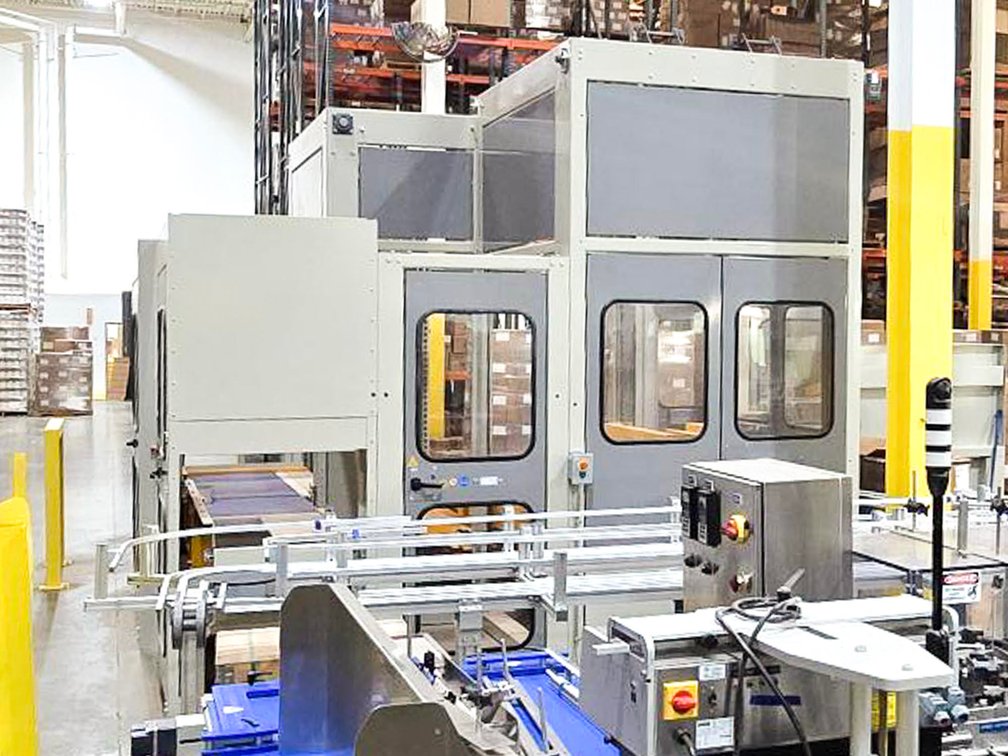

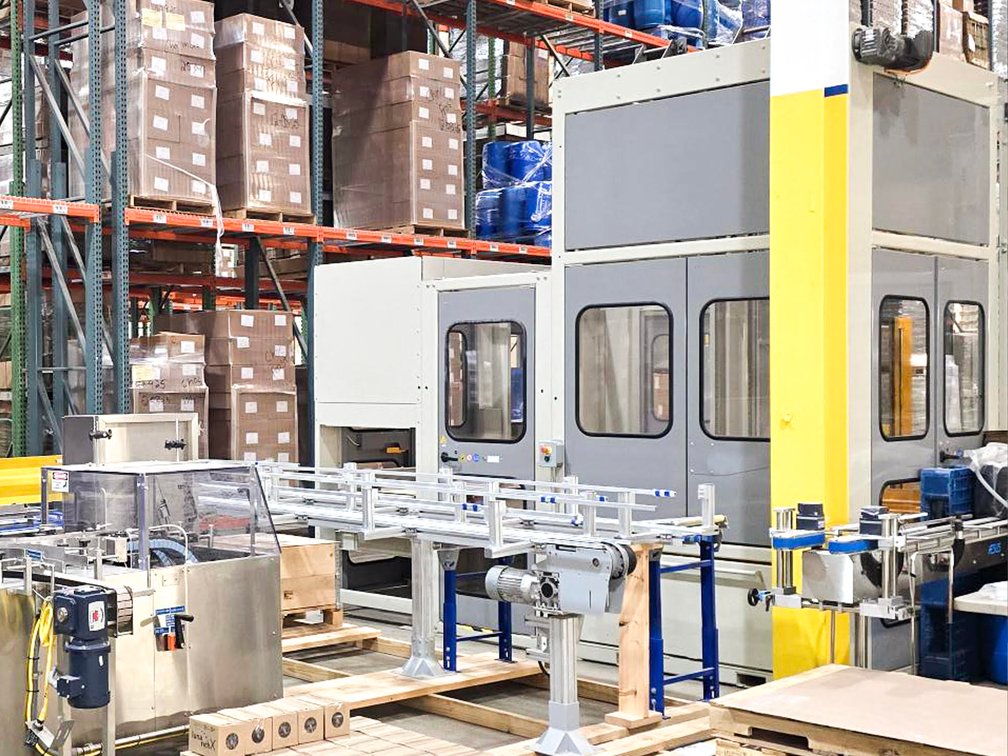

MJK2586 TOP TIER TT-L30 Palletizer / Tie Sheet Inserter

1- MJK2586 TOP TIER TT-L30 Palletizer / Tie Sheet Inserter S/N 221047 MFG 2023 The TopTier TT-L30 Palletizer is a conventional low-infeed, row-forming mechanical palletizer designed for automated end-of-line palletizing of cases, cartons, trays, bags, and similar packaged products. It is commonly used in food, beverage, nutraceutical, personal care, and consumer packaged goods manufacturing facilities. Key Features Low-level infeed design (typically 23"–60" conveyor height) Mechanical row-forming palletizing system that builds complete layers before placing them on the pallet Allen-Bradley PLC controls Color touchscreen HMI EasyStack® software for pallet pattern creation and storage Touch-safe UL-listed control panel Handles a wide range of package styles and pallet configurations Stores multiple pallet patterns and allows rapid changeovers between SKUs Typical Performance Approximately 1–3 layers per minute Handles cases up to 300 lbs per layer Maximum load heights up to approximately 108 inches with optional configurations Can build virtually any pallet pattern required by customers or distribution centers What EasyStack Software Does EasyStack is TopTier's pallet pattern software. It allows operators to: Create pallet patterns from the touchscreen Store dozens of SKU configurations Modify layer arrangements without programming changes Reduce changeover time between products TopTier TT-L30 Tie Sheet Inserter The Tie Sheet Inserter is an accessory that automatically places sheets between pallet layers during pallet building. Purpose of Tie Sheets Tie sheets are used to: Improve pallet stability Separate different product layers Prevent shifting during transportation Support double-stacked loads Improve load integrity for shrink-wrapped or slippery products Features Vacuum pick-and-place sheet handling Inserts: Tie sheets Slip sheets Freezer sheets Top caps Up to three sheet pick positions, allowing different sheet styles or sizes to be used automatically Can place sheets at any programmed layer height during pallet construction Location: Missouri

1- TopTier Automatic Robotic Palletizing System with Integrated Stretch Wrapper

Manufacturer: TopTier, Inc.
Configuration: Automatic Palletizer with Integrated Concurrent Stretch Wrapping System

High-speed, fully automatic palletizing and stretch wrapping system designed for continuous end-of-line case handling operations. This TopTier system automatically receives product from an infeed conveyor, builds programmable pallet patterns, dispenses pallets, inserts tier sheets, and applies stretch wrap without interrupting palletizing production.

The system features TopTier's advanced EasyStack pallet pattern software, allowing operators to quickly create, modify, and store multiple pallet configurations directly through the HMI. The palletizer utilizes servo and VFD-controlled motion for smooth product handling, reduced product damage, and precise layer formation.

Key features include:

Automatic pallet dispensing system
Automatic layer forming and pallet pattern generation
Integrated tier sheet inserter
Concurrent stretch wrapping system allowing wrapping during pallet build cycles
Color touchscreen HMI with recipe management and diagnostics
Safety-enclosed Category 3 fail-safe guarding system
Automatic pallet load exchange
VFD-controlled row build, layer transfer, and load handling
Modular heavy-duty steel frame construction
Automatic film clamp, cut, and wipe-down functions
Programmable wrap patterns and film overlap settings
Supports multiple pallet sizes and load configurations
Designed for unattended production operation

Electrical requirements include 480V, 3-Phase, 60Hz power. The system is constructed using a heavy-duty welded steel frame with industrial-grade Allen-Bradley controls and components.

Ideal for food, beverage, nutraceutical, pharmaceutical, consumer goods, and general manufacturing environments requiring reliable high-throughput palletizing and load stabilization.

Applications: Cartons, corrugated cases, bundled products, shrink-wrapped packs, and other packaged goods.

Location: Missouri
