Details
1 Used Storage Tank 6500 Gal
Driven by: 15 HP, 230/460 volt, 1750 RPM motor, gate-type agitator,
Motor Ratio: 120:1
Final output: 24 RPM
Center bottom discharge: 3", 3" top inlet, and 18" top manhole
Mounted on (6) 6" pipe legs with footpads
Weight: 13000
Length: 19’0
Width: 11’6
Height: 11’6

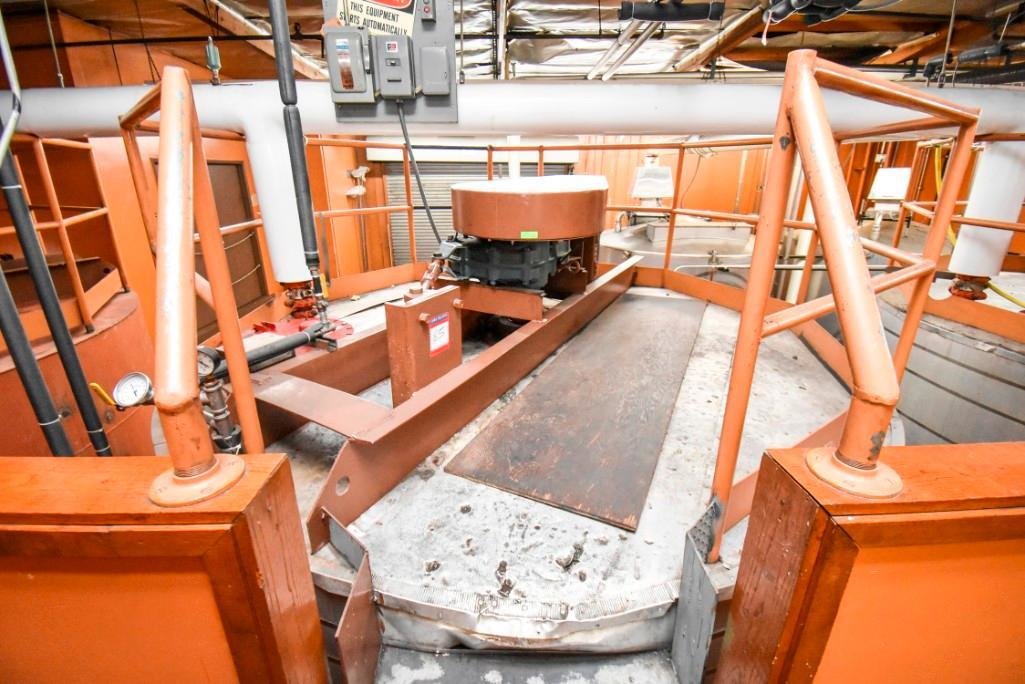

General Info: Full tank Sweep Agitation Heated with Full Jacket Vertical tank, approximately 6,500 gallons, the vessel is jacketed and carbon steel construction, wrapped with insulation. Tank measures 11' diameter x 9'3" straight side with flat top and dish bottom. Complete with top-mounted center agitation with sweep-type paddle agitator assembly,
Location: Los Angeles, CA 90021
