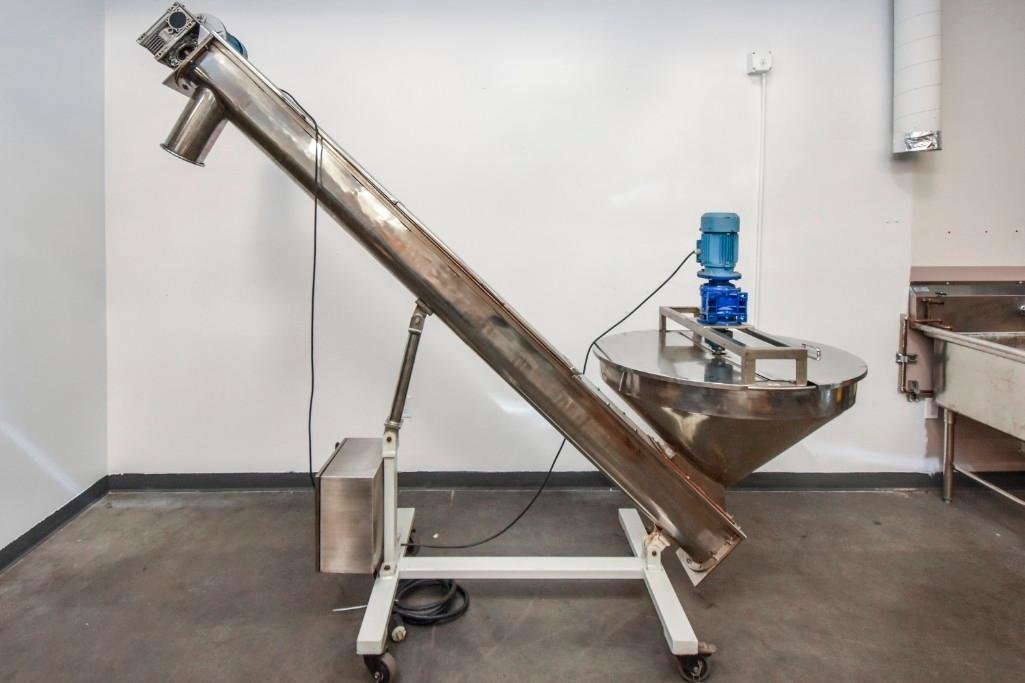

1- Used LABH Powder Auger filler and LABH Powder Elevator
Filling Range: 100g - 1kg
Net Weight: 250
Gross Weight: 400
Fill Size: 10 gm. to 1000 gm. With the help of auger and funnel
Filling Accuracy: +/- 2 % on weight depend on the nature of powder and humidity.
Diameter: 25 mm to 110 mm
Height: max. 275 mm
Speed: 5 to 20 bottles per minute
Bottle/minutes: The speed depends upon – nature of powder and humidity.
Dimension: 700mm (L) , 700mm(W) , 1800mm (H)
Electric Load Main Motor: 1 HP, 230 V, AC, single Phase & Neutral
Container: Plastic, glass, aluminum, etc.
The machine consist of:
Main Drive: 30:1 ration reduction gearbox as driven by an electric motor with the help of `V’ belt pulley and MIXER drive shaft is driven by chain & sprocket. The drive unit is enclosed in M.S. structure Covered with S.S. Sheet.
Hopper Assembly: 50 KG Hopper mounted on top of auger funnel assembly.
Auger Assembly: Rotating auger is mounted in the center of hopper assembly along with steady S.S.funnel.
Mixer Assembly: Mixer assembly is mounted in the centre and on top of the auger for proper mixing of material.
Clutch brake unit: Clutch brake unit mounted in line with the main gearbox to
Control the rotating movement of the auger.
Electrical Assembly: Electrical assembly is housed in the panel box. the machine containing MCB’s, controllers, and push buttons, Thumbwheel switches.
Location: Azusa, CA 91702
