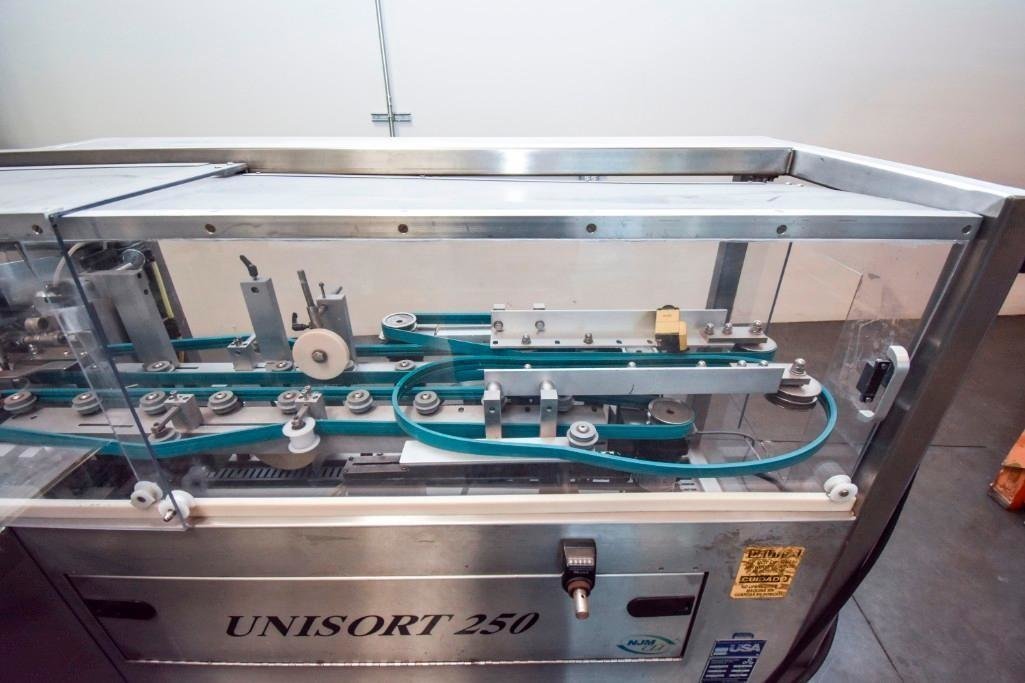

1 - NJM Unisort 250 Bottle Unscrambler

Model: M 250 AR
S/N: 2068
Voltage: 208 AC
Phase: 1
Hz: 60
FLA: 16

General Info:

NJM Bottle Unscrambler is compact and ideal for pharmaceutical and nutraceutical manufacturers, food processors and contract packers. With its advanced design, the UNISORT 32 eases maintenance, improves ergonomics and speed changeovers.

This unit will boost efficiency, increasing line output with a higher capacity bottle feeder. Speed is up to 200 bpm on a 100cc container. The Model UNISORT 32 is nimble and features quick changeover and low maintenance, with AC motors and a simplified transmission.

Standard Features

  • 32-inch (81 cm sorter) diameter centrifugal bowl with Lexan cover
  • Stainless steel construction
  • NEMA 12 electrical enclosure
  • All exposed aluminum parts are anodized
  • Lexan guard door with interlocks
  • Downstream backup control
  • All machine components accessible from floor level for easy maintenance
  • No open-air jets for bottle orientation or control
  • AC motors
  • 15 cu ft. (425 liter) stainless steel hopper feeder with Lexan cover

Size of Containers

  • Type of containers: plastic round, rectangular and square

  • Diameter
    Min. 1" (25.4 mm), Max. 4" (102 mm)
  • Height
    Min. 1.5" (38 mm), Max. 7.5" (190 mm)
  • Conveyor height
    36", +/- 2" (914 mm, +/- 50 mm)

Unscrambler including Hopper

  • Length

    105" (267 cm)
  • Depth
    56" (142 cm)

Output

  • 200 bpm (based on 100 cc round container)

Power & Air Supply

  • Power supply

    220 VAC, 50-60 Hz, 1 phase, with ULC approved components
  • Air supply
    80 psig, 4 scfm (required with optional air rinse)

Website: https://www.njmpackaging.com/products/model-unisort-32-unscrambler/

Skidding and Load out charges: There will be loading and skidding charges added to your purchase at market rates for your convenience.
Location: City of Industry, CA

Skidding: TBD
Loadout: TBD
