Details

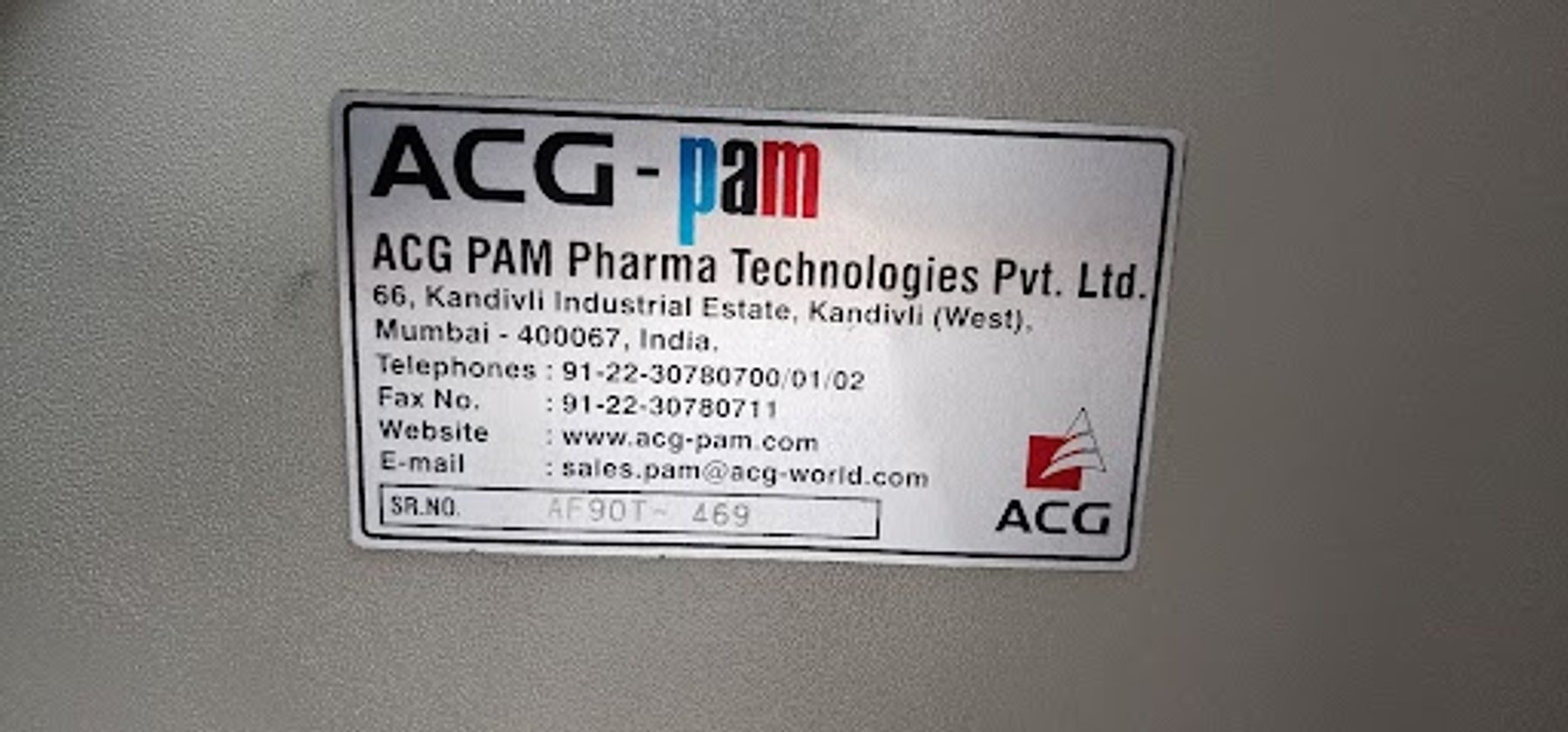

1 - Used ACG PAM Pharma Technologies - AF-90T (Encapsulation Machine)
Model: AF-90T
Volts: 415
Hertz: 50
Phase: 3
Overall Dimensions: 1650mm x 1290mm x 2050mm
Weight: 2350 kgs
Product Description: The AF-90T is a fully automatic capsule-filling machine that can fill a large variety of powder formulations into hard gelatin capsules.
Product Specifications:
Main Motor: 1.5 kW ( 2 HP) at 1440 rpm.
Vacuum Required (Capsule separation): 1100 LPM at 26° of mercury.
Vacuum Required (Cleaning): 2800 LPM at 4° of mercury
Compressed Air: 300 LPM at 6kg/cm2
Output:
- Up to 90,000 capsules/ hour for power filling
- Up to 80,000 capsules/ hour for pellet filling
- Up to 50,000 capsules for Tablet filling (Single tablet)
Products:
- Powders
- Pellets
- Micro Tablets

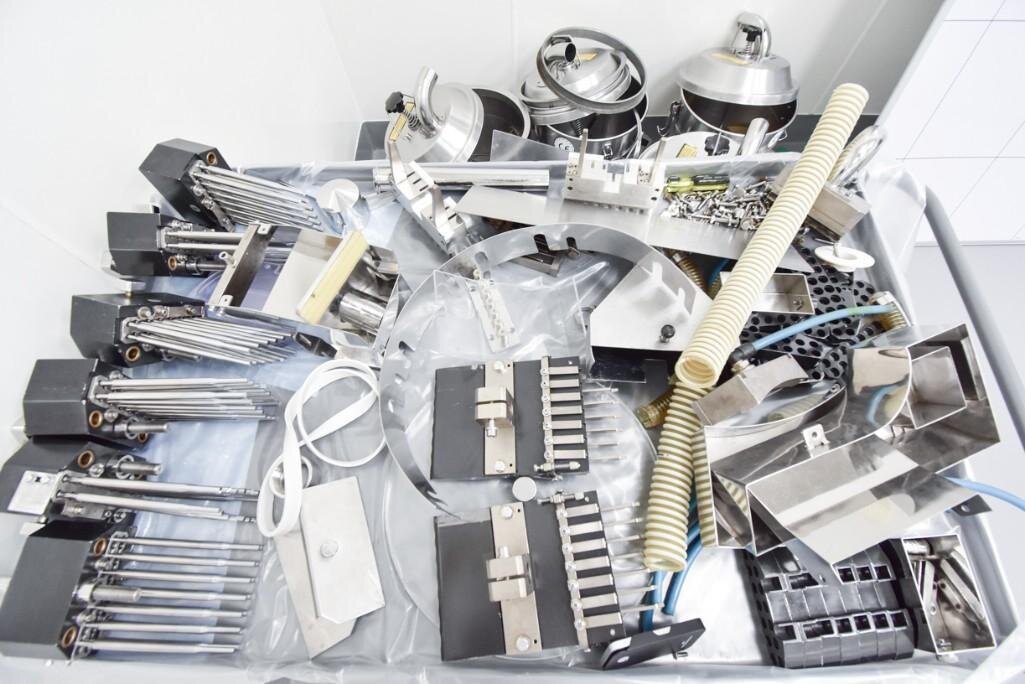

Combination Filings Tooling sizes “0”, “0L”, “00”, “1” come with machine No polisher or metal detector Comes with Operations manual
Skidding and Load out charges: There will be loading and skidding charges added to your purchase at market rates for your convenience.
Location: City Of Industry, CA 91746
Skidding:$625
Load Out:$550
