MJK2401Viking Masek ST1200 Stick Pack Machine

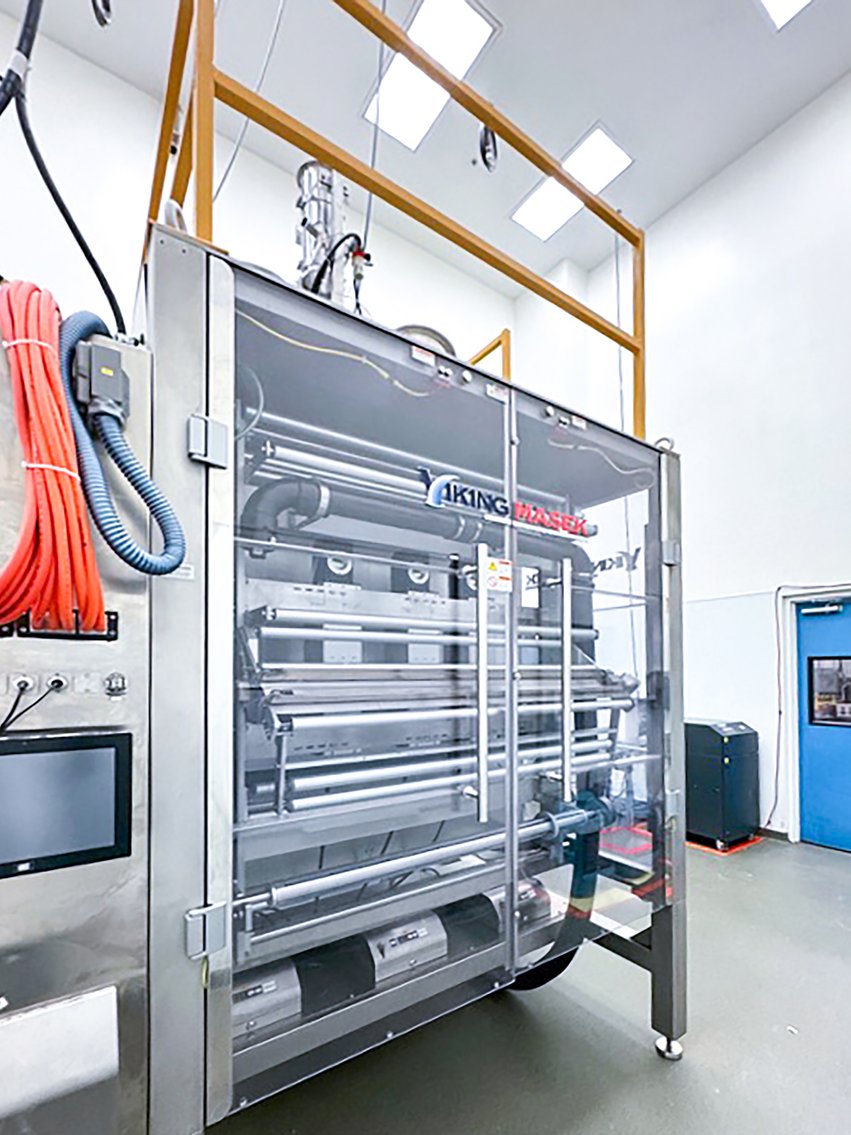

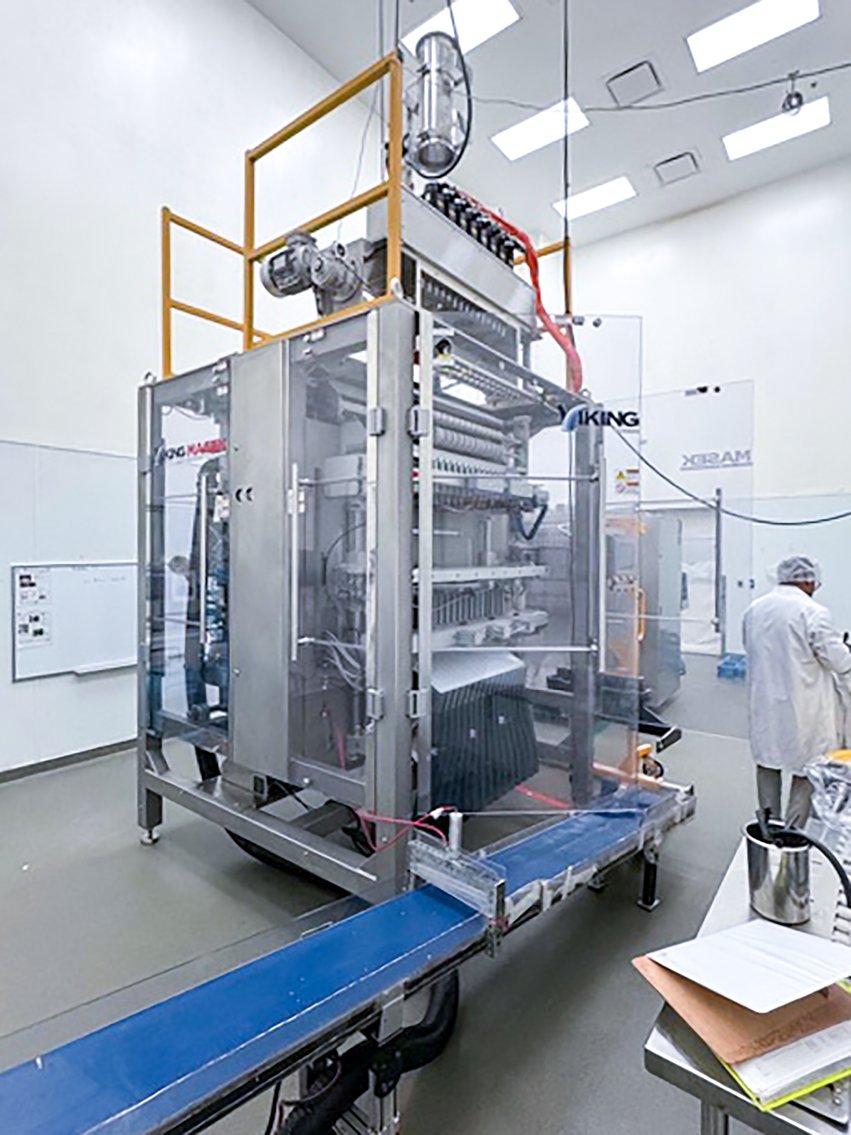

Viking Masek ST1200 Stick Pack Machine
MDL: ST1200
Electrical requirements - Standard 480V, 3 phase, 60 Hz (AB)
Pneumatic Requirements - TBD/CFM@ 90PSI of clean, dry air
ST1200 configured for twelve (12) lanes of:40mm stick packs (90mm pitch, 1080mm web width) Set of operators manuals

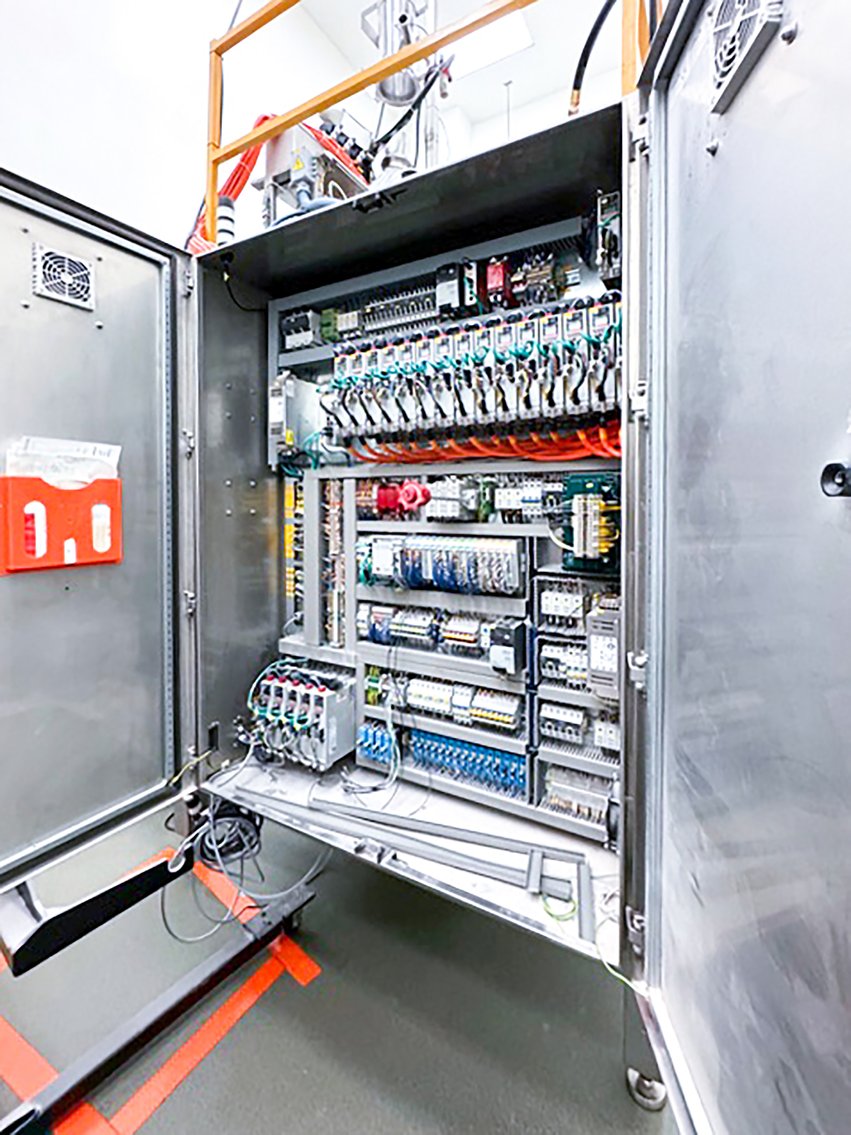

Allen Bradley, Servo, Festo Pneumatic

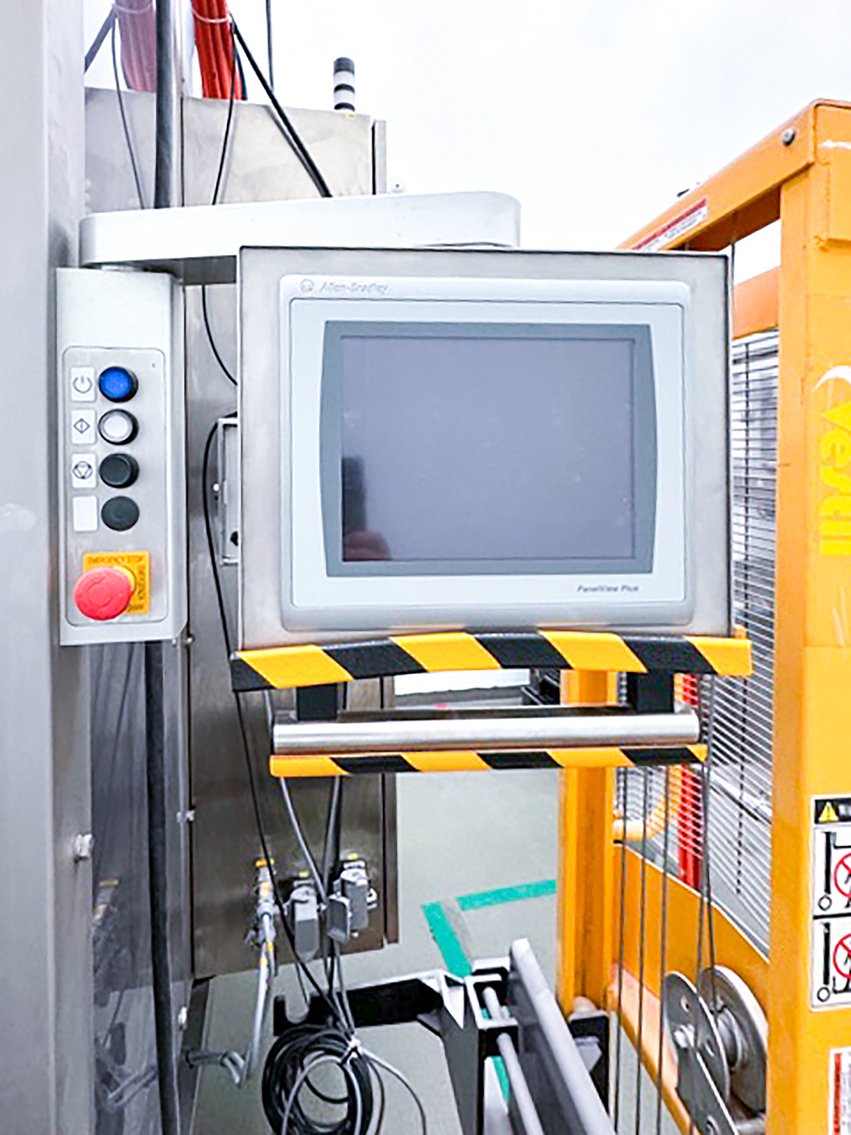

10” AB HMI

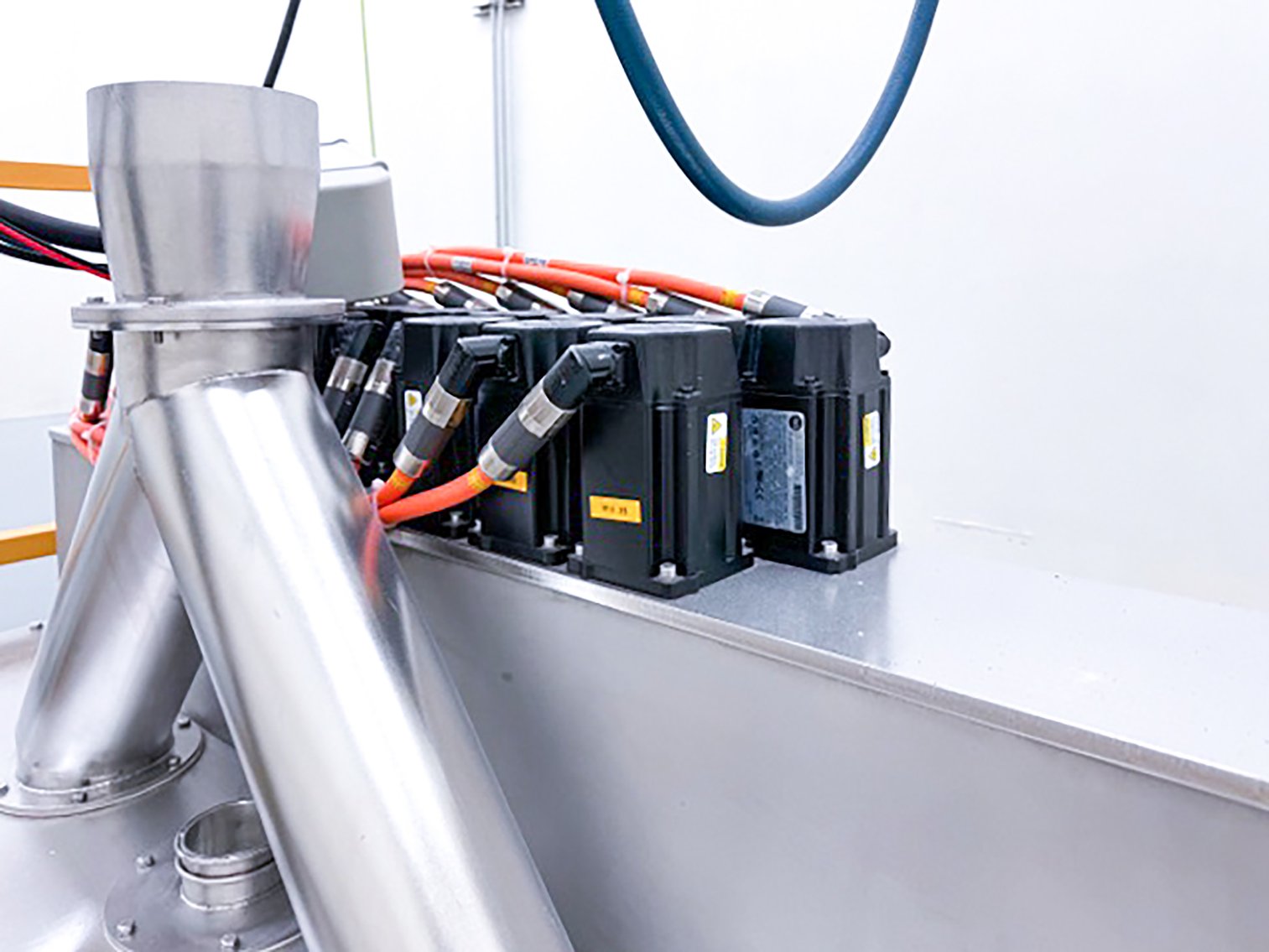

Servo Upgrade Allen Bradley, servo jaws with horizontal end seal pattern and servo film draw down Remote diagnostics modem for remote access to the machine program
Stainless steel upgrade
Straight cut across top and bottom seal, 12 lanes
Cooling Station (Air cooling without cooling jaw)
Automatic film tracking
Covers for film unwind
Individual chutes with stop gates (per lane)
Individual temperature control (per lane)
Printer Registration Bracket
Frame under ST1200 machine
Electrical and program changes for outfeed conveyor
Modification for extended stick length
Diving bridge mounted liquid filling nozzles for bottom-up filling of stickpacks
Viking Masek Green Discharge Conveyor System
Belted side discharge indexing takeaway conveyor
Two conveyor workstations

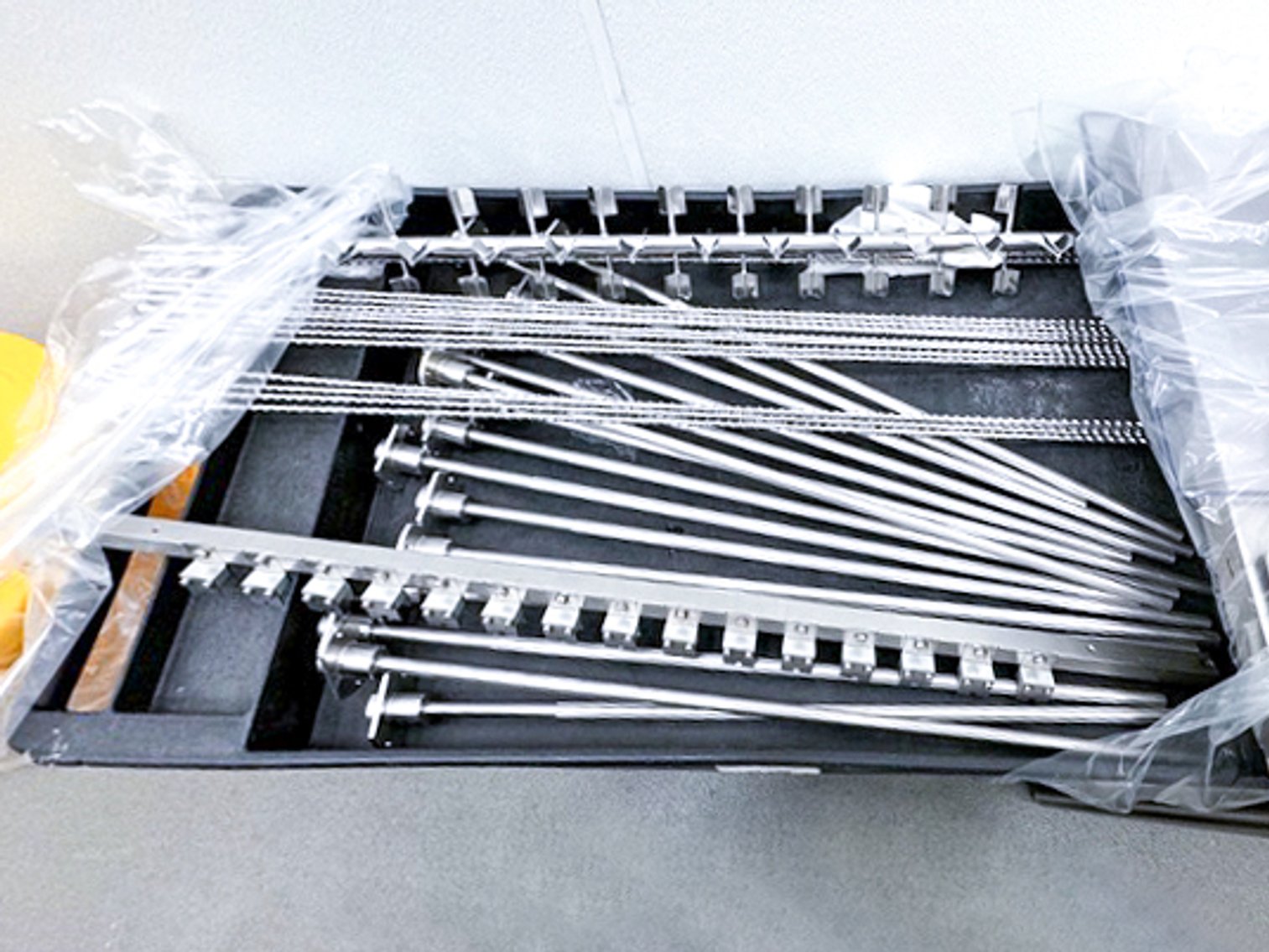

Change-Over Parts Kit
Viking Masek ST1200 Change-Over Kit (15-Lane, 23mm)
Configured for 23mm stick packs (56mm pitch, 840mm web width)
Components:
Film cutting assembly
Straight cut unit
Pour spout with tear notch
Cross jaw with air cooling
Individual chutes with stop gates per lane
Auger Filler DSO11 for 15 lanes
Allen Bradley system for auger filler control
Filler change-over system per lane
Tooling tube and forming tube hand assembly
Vertical seal bar assembly
Rail system for easy cleaning
Change-over cart included

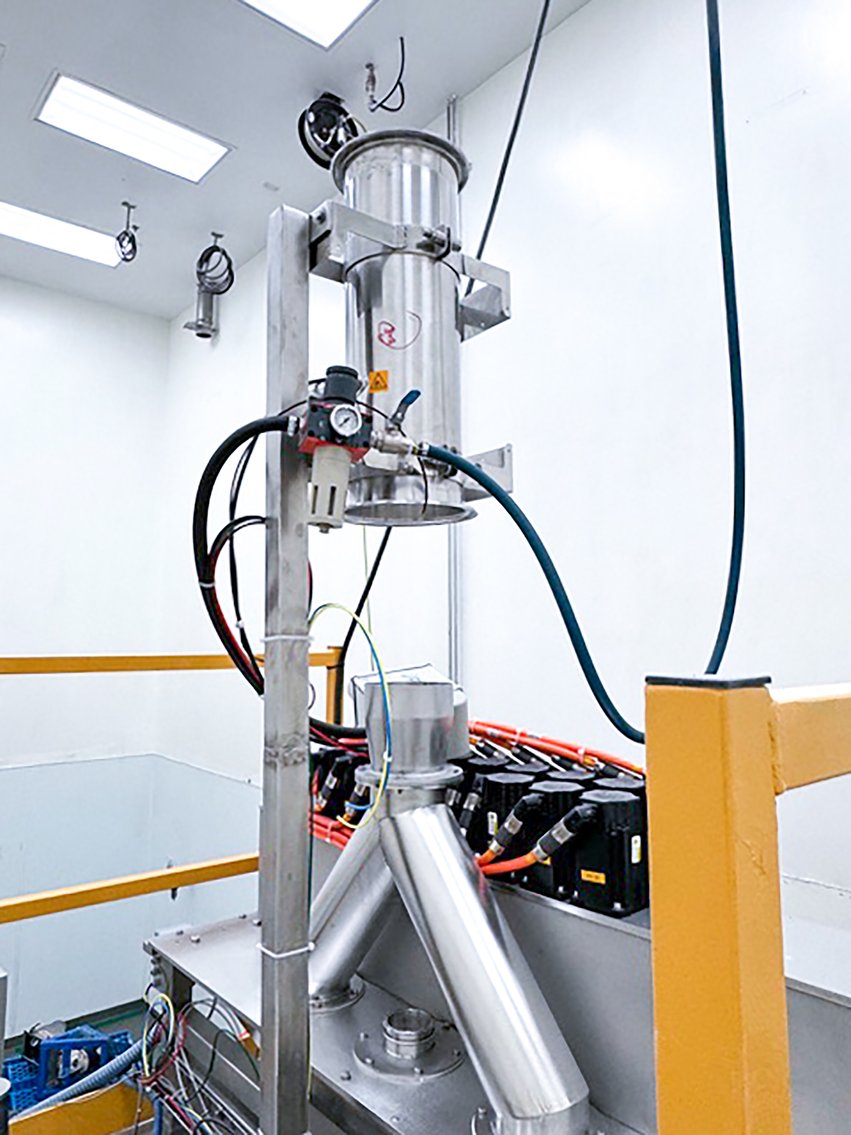

PIAB piFLOWp Vacuum Conveying System
Type: piFLOWp, 7L capacity, 316L stainless steel
Vacuum Pump: piPREMIUM400 COAX® Technology
Seal Type: Anti-static, NBR
Filter Unit: Pleated filter, 0.5-micron
Components:
2” tangential inlet
Stainless steel air-operated actuator
ECU Pneumatic Control Unit
1/2” Main air regulator kit
Ceiling mounting bracket (304 stainless steel)
Discharge transition (rubber-coated nylon)
FlexSock 6” diameter

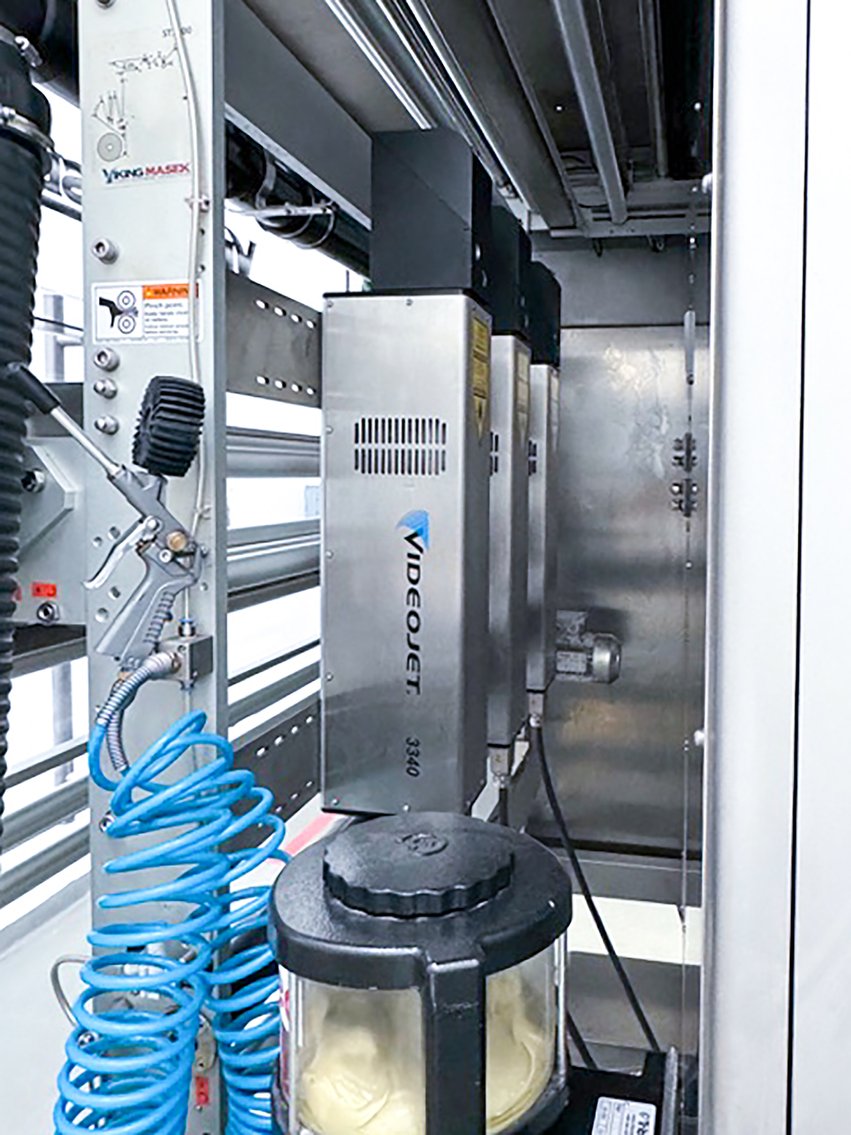

VideoJet 3340 Laser Marking System
VideoJet laser marking system, 3340, 10.6um, IP54 (x3)
30W marking head, SHC150C, W. beam expander, V=S.0 black (x3)
Large focusing module, F=300mm, D=48mm (x3)
US cable mains, CO2-laser, G3 (x3)
Laser light alert kit (x3)
BTU, 300mm, SCH150c, 30W straight out (x3)
AD1000 vacuum system with 100mm x 2m hose kit
PC panel with software
Suction tube system (x2)
T-nozzle with 50mm sleeve (x2)
Standard software, Smartgraph CD
Fishtail nozzle, 50mm (x4)
Large focus finder, F=300mm (RoHS)
Laser Safety Class I Certification
Laser beam shield
Features:
Uptime Advantage with laser source life up to 45,000 hours
Air-cooled laser source for reduced maintenance
High-speed marking capability (up to 150,000 products per hour)
CLARiTY™ Laser Controller for fast product changeovers and diagnostics
High-resolution marking for product traceability
Flexible integration with 32 standard beam delivery options
Multiple interface and communication options
Components:
30W marking head, SHC150C, with beam expander
Large focusing module, F=300mm, D=48mm
IP54-rated enclosure
Vacuum system with 100mm x 2m hose kit
T-nozzle and fishtail nozzle
Standard software with Smartgraph CD
Laser Safety Class I Certification
Laser beam shield
